Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXNH8080YBL3R3NJGFIXED IND 3.3UH 4.9A 19.5MOHM SM |
114 | - |
|
Datasheet | LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 4.9 A | 6.4A | Shielded | 19.5mOhm Max | - | 34MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
NRS8030T1R5NJGJFIXED IND 1.5UH 5.3A 15.6MOHM SM |
997 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.3 A | 6.2A | Shielded | 15.6mOhm Max | - | 80MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
NR6012T100MEFIXED IND 10UH 1A 282 MOHM SMD |
1,933 | - |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1A | Shielded | 282mOhm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
NR6012T470MEFIXED IND 47UH 460MA 1.26OHM SMD |
1,010 | - |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 460 mA | 520mA | Shielded | 1.26Ohm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

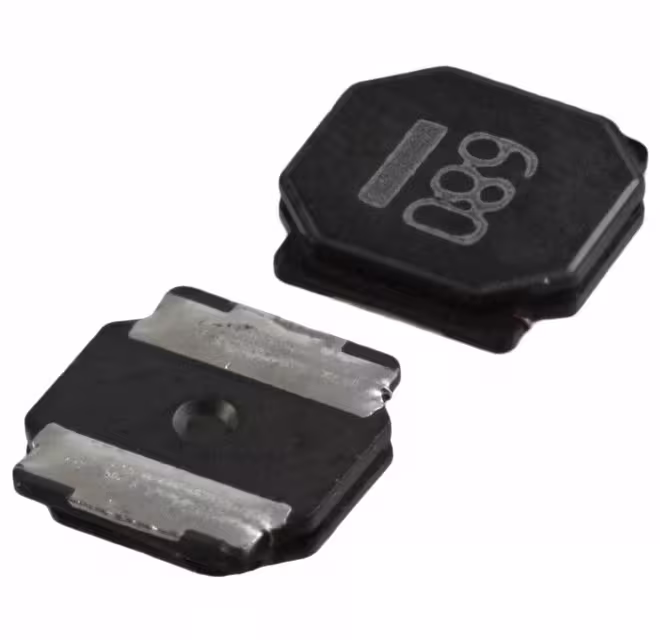

NR6012T680MEFIXED IND 68UH 410MA 1.62OHM SMD |
949 | - |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 410 mA | 440mA | Shielded | 1.62Ohm Max | - | 3MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
NRS5014T100MMGGVFIXED IND 10UH 1.05A 240MOHM SMD |
2,000 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.05 A | 1.4A | Shielded | 240mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LCXND5050MKT4R7MMGFIXED IND 4.7UH 1.4A 216MOHM SMD |
1,900 | - |
|
Datasheet | LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.4 A | 2.2A | Unshielded | 180mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
|
NRS5020T150MMGJVFIXED IND 15UH 1.2A 198 MOHM SMD |
1,563 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.2 A | 1.1A | Shielded | 198mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
NRS5012T2R2MMGFVFIXED IND 2.2UH 2A 102 MOHM SMD |
1,507 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2 A | 3.1A | Shielded | 102mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
|
NRS5020TR47NMGJVFIXED IND 470NH 5A 14.4 MOHM SMD |
1,291 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 5 A | 6.1A | Shielded | 14.4mOhm Max | - | 230MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
