Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLQBA251818T4R7MFIXED IND 4.7UH 240MA 130MOHM SM |
4,565 | - |
|
Datasheet | LLQB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 240 mA | - | Unshielded | 130mOhm | - | 46MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
LLQBA201212T1R0MFIXED IND 1UH 405MA 150 MOHM SMD |
1,806 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 405 mA | - | Unshielded | 150mOhm | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQBA201212T150KFIXED IND 15UH 100MA 1.3 OHM SMD |
3,038 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 100 mA | - | Unshielded | 1.3Ohm | - | 28MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQBA201212T470KFIXED IND 47UH 60MA 3.7 OHM SMD |
4,769 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 60 mA | - | Unshielded | 3.7Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

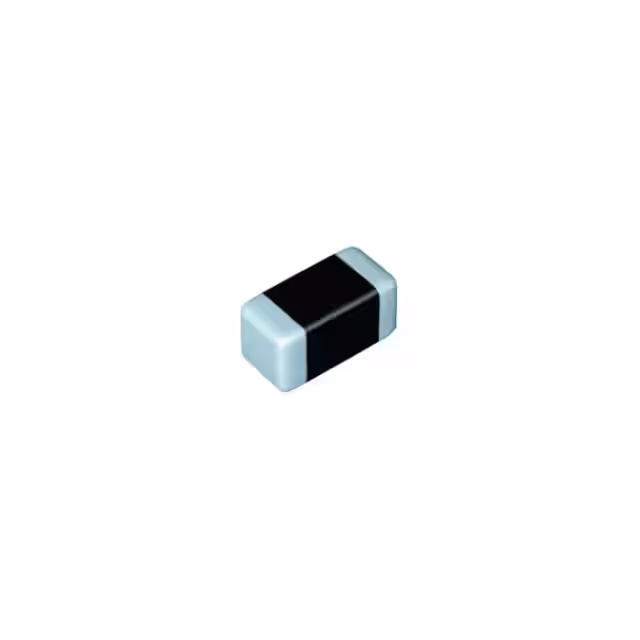

LLQBA201212T220MFIXED IND 22UH 80MA 1.7 OHM SMD |
1,733 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 80 mA | - | Unshielded | 1.7Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQBA201212T101MFIXED IND 100UH 45MA 7 OHM SMD |
1,358 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 45 mA | - | Unshielded | 7Ohm | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQBA201212T470MFIXED IND 47UH 60MA 3.7 OHM SMD |
4,592 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 60 mA | - | Unshielded | 3.7Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQBA201212T680KFIXED IND 68UH 50MA 6 OHM SMD |
1,887 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 50 mA | - | Unshielded | 6Ohm | - | 10MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQBA201212T6R8MFIXED IND 6.8UH 135MA 470MOHM SM |
2,658 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 135 mA | - | Unshielded | 470mOhm | - | 38MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQBA201212T4R7MFIXED IND 4.7UH 190MA 400MOHM SM |
2,629 | - |
|
Datasheet | LLQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 190 mA | - | Unshielded | 400mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
