Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB2518T102K8FIXED IND 1000 UH 0.015A 31.2 OH |
4,864 | - |
|
Datasheet | LB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±10% | 15 mA | - | Unshielded | 24Ohm | - | 2.4MHz | - | -40°C ~ 105°C | 252 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|

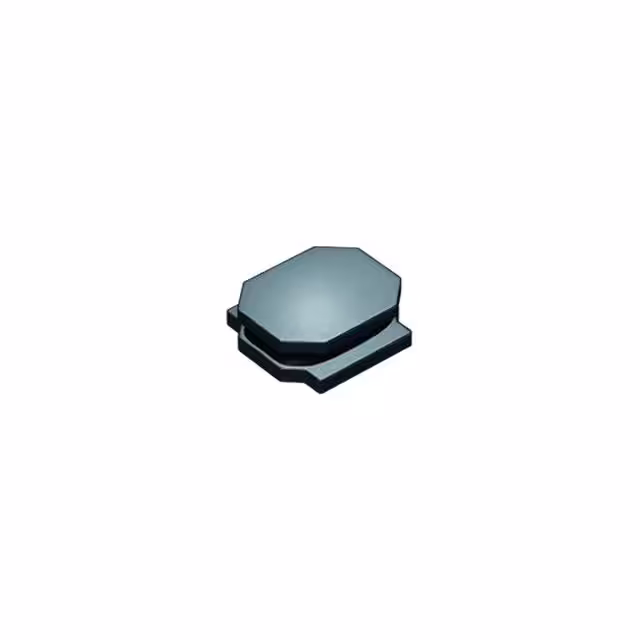

LLXNE2424KKT6R8MNFIXED IND 6.8UH 570MA 492MOHM SM |
3,419 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 570 mA | 750mA | Shielded | 410mOhm | - | 43MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LLXNE2424KKT2R2MNFIXED IND 2.2UH 970MA 180MOHM SM |
1,393 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 970 mA | 1.29A | Shielded | 150mOhm | - | 77MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LLXNE2424KKT4R7MNFIXED IND 4.7UH 670MA 348MOHM SM |
3,708 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 670 mA | 880mA | Shielded | 290mOhm | - | 50MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LLXNE2424KKT150MNFIXED IND 15UH 370MA 1.224OHM SM |
1,361 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 370 mA | 470mA | Shielded | 1.02Ohm | - | 27MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LLXNE2424KKT100MNFIXED IND 10UH 450MA 828MOHM SMD |
2,683 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 450 mA | 550mA | Shielded | 690mOhm | - | 32MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LLXNE2424KKTR68NNFIXED IND 680NH 1.57A 72MOHM SMD |
4,029 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 nH | ±30% | 1.57 A | 2.2A | Shielded | 60mOhm | - | 120MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LLXNE2424KKT1R0NNFIXED IND 1UH 1.41A 84 MOHM SMD |
3,862 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.41 A | 1.8A | Shielded | 70mOhm | - | 106MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LLXNE2424KKT220MNFIXED IND 22UH 300MA 1.764OHM SM |
2,226 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 300 mA | 390mA | Shielded | 1.47Ohm | - | 22MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LLXNE2424KKT1R5MNFIXED IND 1.5UH 1.16A 132MOHM SM |
2,543 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1.16 A | 1.55A | Shielded | 110mOhm | - | 94MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
