Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLCNB1608HKT1R0MDFIXED IND 1UH 1.6A 110 MOHM SMD |
2,800 | - |
|
Datasheet | LLCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 1.6 A | 2.2A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
LLXBD3030MKT4R7MFIXED IND 4.7UH 980MA 156MOHM SM |
4,734 | - |
|
Datasheet | LLXB | 1212 (3030 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±20% | 980 mA | 770mA | Shielded | 130mOhm | - | 48MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

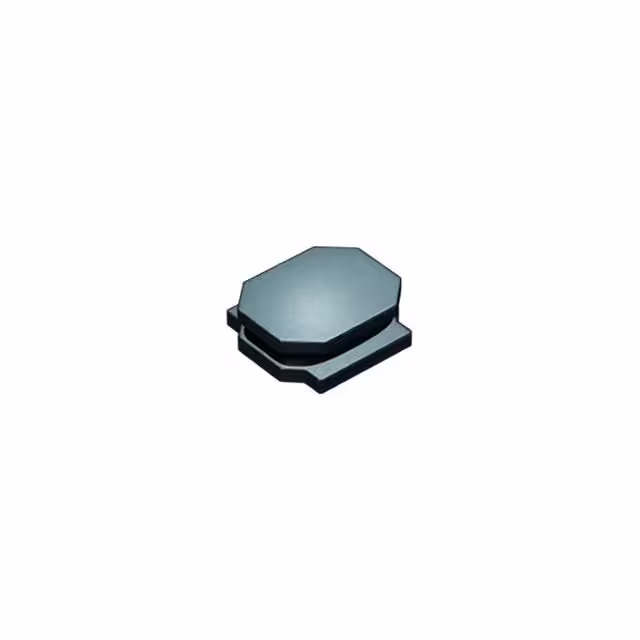

LLXBD3030MKT6R8MFIXED IND 6.8UH 740MA 228MOHM SM |
3,644 | - |
|
Datasheet | LLXB | 1212 (3030 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 740 mA | 670mA | Shielded | 190mOhm | - | 40MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LLXBD3030MKT3R3MFIXED IND 3.3UH 1.05A 120MOHM SM |
3,020 | - |
|
Datasheet | LLXB | 1212 (3030 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.3 µH | ±20% | 1.05 A | 910mA | Shielded | 100mOhm | - | 55MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LLXBD3030MKT220MFIXED IND 22UH 420MA 756MOHM SMD |
3,169 | - |
|
Datasheet | LLXB | 1212 (3030 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 420 mA | 375mA | Shielded | 630mOhm | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LLXBD3030MKT470MFIXED IND 47UH 280MA 1.74OHM SMD |
1,786 | - |
|
Datasheet | LLXB | 1212 (3030 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 280 mA | 250mA | Shielded | 1.45Ohm | - | 17MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSXBD3030MKT6R8MFIXED IND 6.8UH 740MA 228MOHM SM |
2,420 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 740 mA | 670mA | Shielded | 190mOhm | - | 40MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSXBD3030MKT330MFIXED IND 33UH 330MA 1.236OHM SM |
1,746 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 33 µH | ±20% | 330 mA | 310mA | Shielded | 1.03Ohm | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LLXBD3030MKT1R0NFIXED IND 1UH 1.49A 60 MOHM SMD |
4,470 | - |
|
Datasheet | LLXB | 1212 (3030 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1 µH | ±30% | 1.49 A | 1.5A | Shielded | 50mOhm | - | 110MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSXBD3030MKT1R5NFIXED IND 1.5UH 1.4A 72 MOHM SMD |
4,112 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1.5 µH | ±30% | 1.4 A | 1.36A | Shielded | 60mOhm | - | 92MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
