Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLXBD3030KKT3R3MFIXED IND 3.3UH 940MA 168MOHM SM |
4,328 | - |
|
Datasheet | LLXB | 1212 (3030 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.3 µH | ±20% | 940 mA | 870mA | Shielded | 140mOhm | - | 63MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LSXBD3030KKT1R0NFIXED IND 1UH 1.4A 78 MOHM SMD |
2,515 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1 µH | ±30% | 1.4 A | 1.3A | Shielded | 65mOhm | - | 126MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LSXBD3030KKT3R3MFIXED IND 3.3UH 940MA 168MOHM SM |
2,592 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.3 µH | ±20% | 940 mA | 870mA | Shielded | 140mOhm | - | 63MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LLXBD3030KKT2R2MFIXED IND 2.2UH 1.1A 114MOHM SMD |
4,417 | - |
|
Datasheet | LLXB | 1212 (3030 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.2 µH | ±20% | 1.1 A | 1.1A | Shielded | 95mOhm | - | 82MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LLXND5050PKT6R8MMGFIXED IND 6.8UH 1.2A 150MOHM SMD |
1,308 | - |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 1.6A | Shielded | 150mOhm | - | 33MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LSXND5050MKT100MMGFIXED IND 10UH 850MA 504MOHM SMD |
4,291 | - |
|
Datasheet | LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 850 mA | 1.4A | Shielded | 504mOhm Max | - | 26MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
LSXND5050MKT1R5NMGFIXED IND 1.5UH 2.2A 84 MOHM SMD |
4,529 | - |
|
Datasheet | LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 2.2 A | 3.8A | Shielded | 84mOhm Max | - | 86MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
LCXND4040KKL3R3MDGFIXED IND 3.3UH 1.4A 120MOHM SMD |
4,774 | - |
|
Datasheet | LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.4 A | 1.1A | Unshielded | 100mOhm | - | 58MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LCXND4040KKL4R7MDGFIXED IND 4.7UH 1.2A 168MOHM SMD |
1,285 | - |
|
Datasheet | LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 950mA | Unshielded | 140mOhm | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|

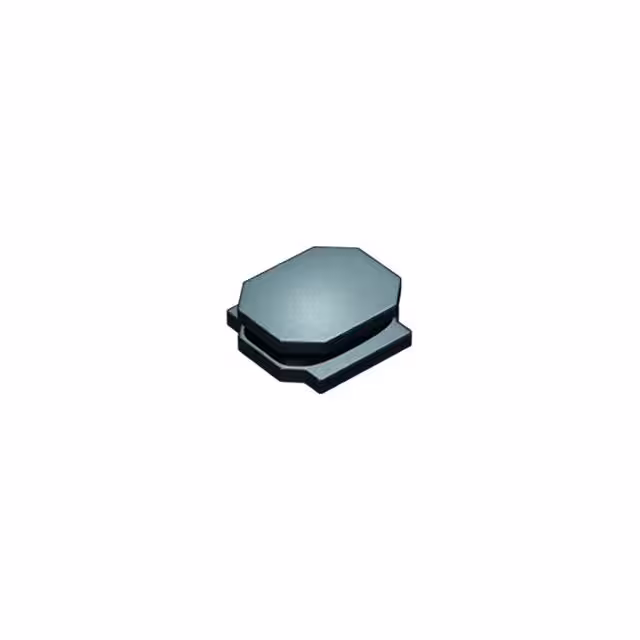

LCXND4040KKL2R2MDGFIXED IND 2.2UH 1.5A 102MOHM SMD |
3,104 | - |
|
Datasheet | LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.2A | Unshielded | 85mOhm | - | 73MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
