Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXND5050WKT470MMGFIXED IND 47UH 0.56A 522 MOHM SM |
4,246 | - |
|
Datasheet | LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 560 mA | 630mA | Unshielded | 435mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
-1,45mm.jpg "LBC2012T2R2M")
|
LBC2012T2R2MFIXED IND 2.2UH 430MA 330MOHM SM |
3,717 | - |
|
Datasheet | LB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 430 mA | - | Unshielded | 330mOhm | - | 70MHz | - | -25°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,80mm.jpg "LBM2016TR12J")
|
LBM2016TR12JFIXED IND 120NH 610MA 130MOHM SM |
1,388 | - |
|
Datasheet | LB, M Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 610 mA | - | Unshielded | 130mOhm | 30 @ 25.2MHz | 600MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQCA322525T100KRFIXED IND 10UH 540MA 133MOHM SMD |
1,508 | - |
|
Datasheet | LLQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 540 mA | - | Unshielded | 172.9mOhm Max | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
NRS5014TR47NMGGFIXED IND 470NH 3.3A 25 MOHM SMD |
3,928 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 3.3 A | 5.8A | Shielded | 25mOhm Max | - | 185MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
|
NRS5014T150MMGGFIXED IND 15UH 650MA 384MOHM SMD |
2,788 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 650 mA | 1.1A | Shielded | 384mOhm Max | - | 20MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
|
NRS5014T220MMGGFIXED IND 22UH 550MA 540MOHM SMD |
1,157 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 550 mA | 900mA | Shielded | 540mOhm Max | - | 16MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LLCNB1210EKTR47MBFIXED IND 470NH 1.6A 82 MOHM SMD |
3,668 | - |
|
Datasheet | LLCN | 0504 (1210 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 1.6 A | 2.3A | Unshielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0504 | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0.020" (0.50mm) |
|
LSCNB1210EKTR47MBFIXED IND 470NH 1.6A 82 MOHM SMD |
4,528 | - |
|
Datasheet | LSCN | 0504 (1210 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 1.6 A | 2.3A | Unshielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0504 | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0.020" (0.50mm) |
|

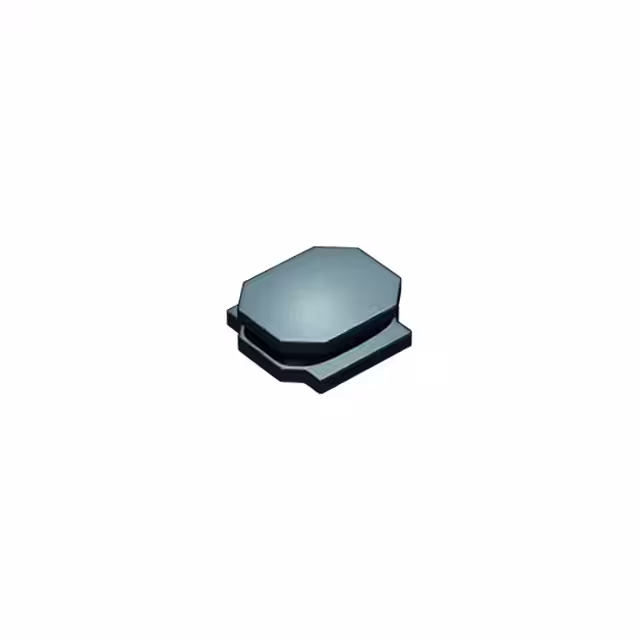

NRS5020T470MMGJVFIXED IND 47UH 0.56A 522 MOHM SM |
2,637 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 560 mA | 630mA | Shielded | 522mOhm Max | - | 12MHz | AEC-Q200 | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
