Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMDND4040MKT4R7MMFIXED IND 4.7 UH 1.9A 0.16 OHM |
1,601 | - |
|
Datasheet | MCOIL™, LMDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 1.9 A | 2.5A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LBDND4040MKT100MMFIXED IND 10 UH 1.4A 0.33 OHM |
2,263 | - |
|
Datasheet | MCOIL™, LBDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 1.4 A | 1.7A | Unshielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LMDND4040MKT100MMFIXED IND 10 UH 1.4A 0.33 OHM |
1,514 | - |
|
Datasheet | MCOIL™, LMDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 1.4 A | 1.7A | Unshielded | 330mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LMDND4040MKTR68MMFIXED IND 0.68 UH 5A 0.029 OHM |
3,779 | - |
|
Datasheet | MCOIL™, LMDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 5 A | 6.7A | Unshielded | 29mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LBDND4040MKT2R2MMFIXED IND 2.2 UH 2.8A 0.079 OHM |
1,356 | - |
|
Datasheet | MCOIL™, LBDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.8 A | 3.8A | Unshielded | 79mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
NR6020T0R8NFIXED IND 800NH 3.8A 24 MOHM SMD |
2,325 | - |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 800 nH | ±30% | 3.8 A | 5.5A | Shielded | 24mOhm Max | - | 110MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|

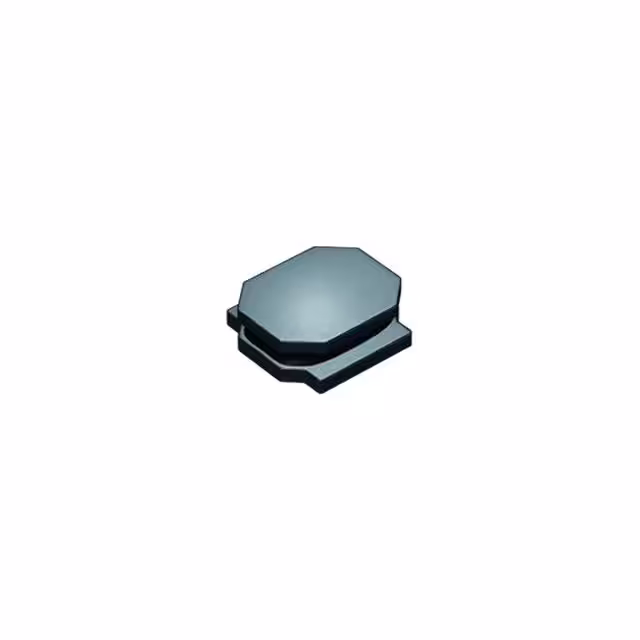

LSXBD6060WKL6R8NFIXED IND 6.8UH 1.8A 102MOHM SMD |
1,613 | - |
|
Datasheet | LSXB | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 1.8 A | 2A | Shielded | 85mOhm | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LSXBD6060WKL100MFIXED IND 10UH 1.4A 150 MOHM SMD |
1,620 | - |
|
Datasheet | LSXB | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.4 A | 1.7A | Shielded | 125mOhm | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LSXBD6060WKL220MFIXED IND 22UH 950MA 348MOHM SMD |
2,264 | - |
|
Datasheet | LSXB | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 950 mA | 1.05A | Shielded | 290mOhm | - | 11MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LSXBD6060WKL4R7NFIXED IND 4.7UH 2A 69.6 MOHM SMD |
1,457 | - |
|
Datasheet | LSXB | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 2 A | 2.4A | Shielded | 58mOhm | - | 43MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
