Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLRNJ10165GL100MNYFIXED IND 10UH 4.66A 20.4MOHM SM |
3,528 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.66 A | 5.2A | Shielded | 17.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LLRNJ10165GL2R2NNYFIXED IND 2.2UH 7.32A 8.4MOHM SM |
2,215 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 7.32 A | 10.8A | Shielded | 7.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LSRNJ10165GL4R7NNYFIXED IND 4.7UH 5.88A 13.2 MOHM |
3,491 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 5.88 A | 7.7A | Shielded | 13.5mOhm Max | - | 36.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LLRNJ10165GL220MNYFIXED IND 22UH 3.41A 37.2MOHM SM |
1,810 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.41 A | 3.6A | Shielded | 31.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|

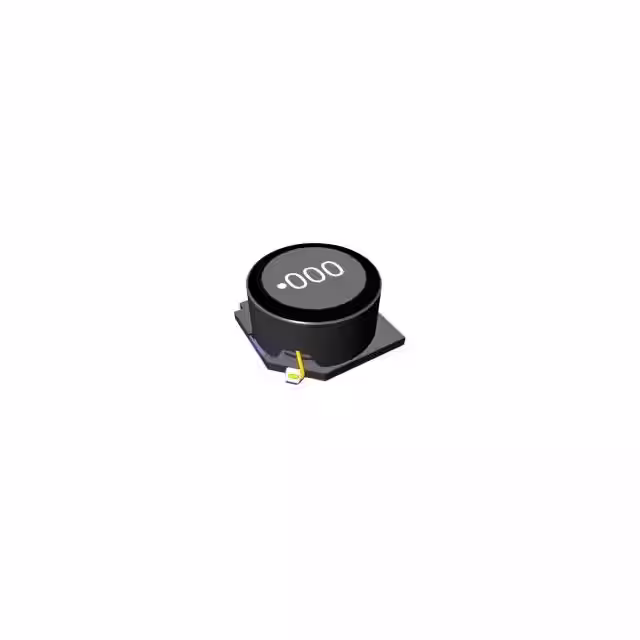

LLRNJ10165GL150MNYFIXED IND 15UH 3.84A 30 MOHM SMD |
1,579 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3.84 A | 4.5A | Shielded | 25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LLRNJ10165GL1R5NNYFIXED IND 1.5UH 8.04A 7.2MOHM SM |
1,463 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 8.04 A | 13.6A | Shielded | 6.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LLRNJ10165GL6R8NNYFIXED IND 6.8UH 5.22A 16.8 MOHM |
1,579 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 5.22 A | 6A | Shielded | 14mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
NRS8040T0R9NJGJFIXED IND 900NH 7.8A 7.8MOHM SMD |
3,120 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±30% | 7.8 A | 13A | Shielded | 7.8mOhm Max | - | 85MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
LMDND4040WKT4R7MMFIXED IND 4.7 UH 2.5A 0.107 OHM |
1,154 | - |
|
Datasheet | MCOIL™, LMDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 2.5 A | 3.5A | Unshielded | 107mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
LBDND4040WKT1R0MMFIXED IND 1.0 UH 5.1A 0.027 OHM |
2,523 | - |
|
Datasheet | MCOIL™, LBDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 5.1 A | 7A | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
