Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

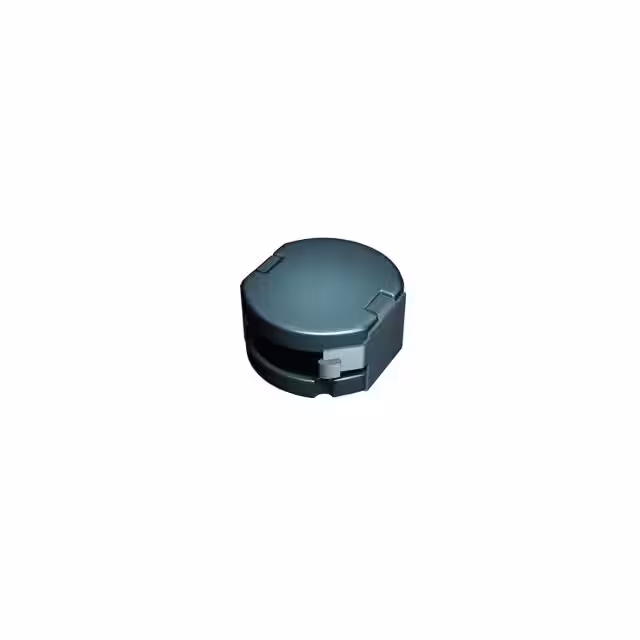

LLXBH10050HL150MFIXED IND 15UH 3.2A 45.5MOHM SMD |
2,760 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3.2 A | 3.6A | Shielded | 35mOhm | - | 11MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL101MFIXED IND 100UH 1.2A 271.7 MOHM |
1,439 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | 1.3A | Shielded | 209mOhm | - | 4.6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL1R3NFIXED IND 1.3UH 9A 8.84 MOHM SMD |
1,914 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.3 µH | ±30% | 9 A | 11A | Shielded | 6.8mOhm | - | 53MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL2R1NFIXED IND 2.1UH 8.3A 10.4MOHM SM |
4,256 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.1 µH | ±30% | 8.3 A | 10A | Shielded | 8mOhm | - | 37MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL220MFIXED IND 22UH 2.5A 58.5MOHM SMD |
2,539 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.5 A | 2.6A | Shielded | 45mOhm | - | 10MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL330MFIXED IND 33UH 2.1A 85.8MOHM SMD |
2,925 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 2.1 A | 2.5A | Shielded | 66mOhm | - | 8.2MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL6R5NFIXED IND 6.5UH 5.2A 23.4MOHM SM |
2,011 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.5 µH | ±30% | 5.2 A | 6A | Shielded | 18mOhm | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL3R8NFIXED IND 3.8UH 6.8A 16.9MOHM SM |
4,280 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.8 µH | ±30% | 6.8 A | 7.3A | Shielded | 13mOhm | - | 26MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL470MFIXED IND 47UH 1.8A 119.6MOHM SM |
2,366 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 2A | Shielded | 92mOhm | - | 7MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL2R9NFIXED IND 2.9UH 7.3A 12.09 MOHM |
1,993 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.9 µH | ±30% | 7.3 A | 8.2A | Shielded | 9.3mOhm | - | 29MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
