Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

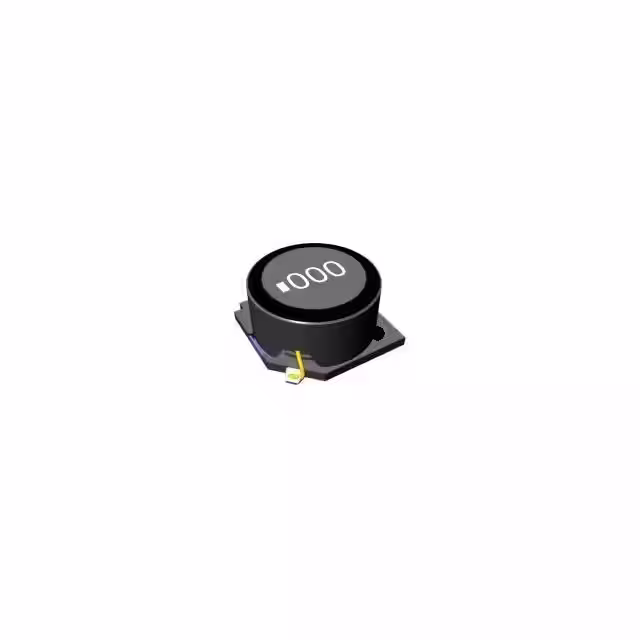

LCRNJ12575GL2R7NNFIXED IND 2.7UH 7.69A 10.2 MOHM |
3,274 | - |
|
Datasheet | LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.7 µH | ±30% | 7.69 A | 13.91A | Shielded | 8.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
NR10050T1R3NFIXED IND 1.3UH 9A 8.84 MOHM SMD |
3,876 | - |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.3 µH | ±30% | 9 A | 11A | Shielded | 8.84mOhm Max | - | 53MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
NR10050T2R9NFIXED IND 2.9UH 7.3A 12.09 MOHM |
4,343 | - |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.9 µH | ±30% | 7.3 A | 8.2A | Shielded | 12.09mOhm Max | - | 29MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
NS10165T1R5NNAFIXED IND 1.5UH 8.04A 7.2MOHM SM |
1,518 | - |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.04 A | 13.6A | Shielded | 7.2mOhm Max | - | 85.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
|
NS10165T4R7NNAFIXED IND 4.7UH 5.88A 13.2 MOHM |
1,941 | - |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.88 A | 7.7A | Shielded | 13.2mOhm Max | - | 36.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LAYPH10060DL100MGAFIXED IND 10UH 4.3A 26 MOHM SMD |
1,485 | - |
|
Datasheet | LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3 A | 4.3A | Shielded | 22mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL150MGAFIXED IND 15UH 3.6A 37 MOHM SMD |
4,015 | - |
|
Datasheet | LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 3.7A | Shielded | 31mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL151MGAFIXED IND 150UH 1.2A 295MOHM SMD |
2,619 | - |
|
Datasheet | LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 720 mA | 1.2A | Shielded | 246mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|

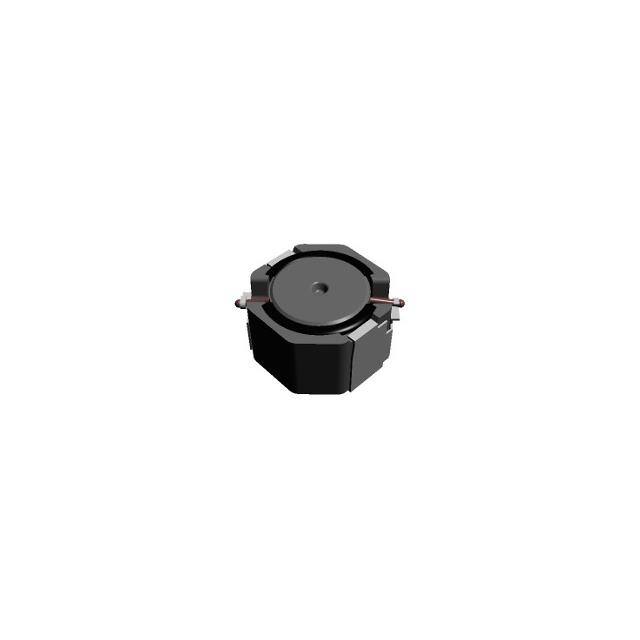

LAYPH10060DL1R5NGAFIXED IND 1.5UH 8A 7 MOHM SMD |
4,053 | - |
|
Datasheet | LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 5.6 A | 9A | Shielded | 5.6mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL6R8NGAFIXED IND 6.8UH 5A 21 MOHM SMD |
3,407 | - |
|
Datasheet | LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 3.5 A | 5.5A | Shielded | 16mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
