Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLFR1608T470M-LRFIXED IND 47UH 100MA 2.3 OHM SMD |
4,167 | - |
|
Datasheet | GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 100 mA | 35mA | Shielded | 2.3Ohm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

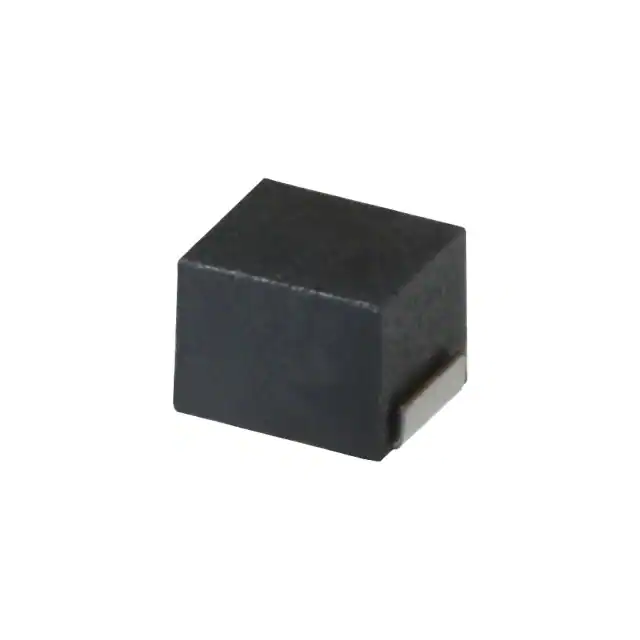

NLHV25T-R39J-PFFIXED IND 390NH 375MA 730MOHM SM |
4,656 | - |
|
Datasheet | NLHV | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 nH | ±5% | 375 mA | - | Unshielded | 730mOhm Max | 40 @ 25.2MHz | 375MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
VLF10040T-2R2N7R1FIXED IND 2.2UH 7.1A 9.5MOHM SMD |
1,779 | - |
|
Datasheet | VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.1 A | 8.2A | Shielded | 9.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.157" (4.00mm) |
|
VLF10045T-1R0N100FIXED IND 1UH 10A 5.5 MOHM SMD |
1,930 | - |
|
Datasheet | VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 10 A | 13.5A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.177" (4.50mm) |
|
VLF12060T-2R7N100FIXED IND 2.7UH 10A 6.4 MOHM SMD |
3,313 | - |
|
Datasheet | VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 10 A | 12A | Shielded | 6.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.461" W (12.00mm x 11.70mm) | 0.236" (6.00mm) |
|
GLF201208T220MFIXED IND 22UH 150MA 3.5 OHM SMD |
3,846 | - |
|
Datasheet | GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 150 mA | 80mA | Shielded | 3.5Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T2R2MFIXED IND 2.2UH 350MA 560MOHM SM |
3,717 | - |
|
Datasheet | GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 350 mA | 220mA | Shielded | 560mOhm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T470MFIXED IND 47UH 120MA 5.3 OHM SMD |
2,049 | - |
|
Datasheet | GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 120 mA | 60mA | Shielded | 5.3Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T4R7MFIXED IND 4.7UH 300MA 740MOHM SM |
2,095 | - |
|
Datasheet | GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 300 mA | 160mA | Shielded | 740mOhm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
MLF1005A1R5KFIXED IND 1.5UH 10MA 1.3 OHM SMD |
3,327 | - |
|
Datasheet | MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 µH | ±10% | 10 mA | - | Shielded | 1.3Ohm Max | 25 @ 10MHz | 100MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
