Fixed Inductors

Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
AX97-30680 FIXED IND 68UH 1.8A 200 MOHM SMD Triad Magnetics	4,649	-	RFQ	Datasheet	AX97	Nonstandard	Box	Active	Drum Core, Wirewound	Ferrite	68 µH	±20%	1.8 A	-	Unshielded	200mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.530" L x 0.370" W (13.46mm x 9.40mm)	0.232" (5.90mm)
AX97-30681 FIXED IND 680UH 400MA 2.2OHM SMD Triad Magnetics	4,593	-	RFQ	Datasheet	AX97	Nonstandard	Box	Active	Drum Core, Wirewound	Ferrite	680 µH	±20%	400 mA	-	Unshielded	2.2Ohm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.530" L x 0.370" W (13.46mm x 9.40mm)	0.232" (5.90mm)

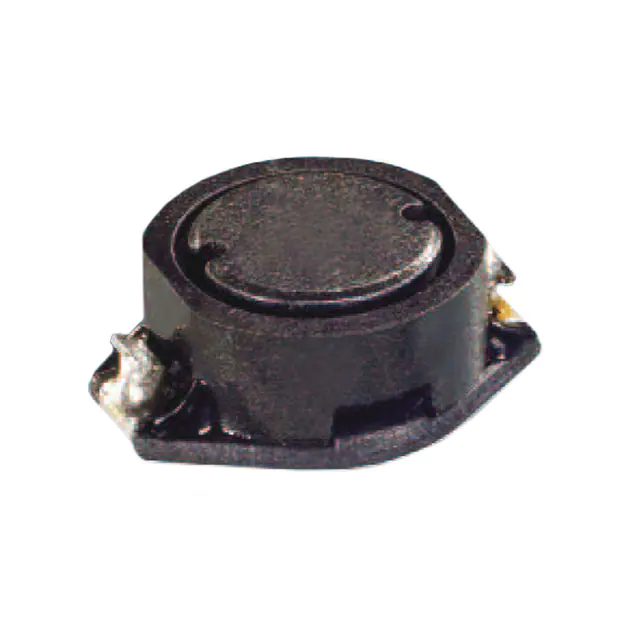

AX1005-102K FIXED IND 1MH 220MA 3.2 OHM SMD Triad Magnetics	4,752	-	RFQ	Datasheet	AX1005	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	1 mH	±10%	220 mA	-	Shielded	3.2Ohm Max	70 @ 100kHz	2MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.500" L x 0.394" W (12.70mm x 10.00mm)	0.193" (4.90mm)
AX97-40681 FIXED IND 680UH 780MA 1 OHM SMD Triad Magnetics	1,993	-	RFQ	Datasheet	AX97	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	680 µH	±20%	780 mA	-	Unshielded	1Ohm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.634" L x 0.622" W (16.10mm x 15.80mm)	0.284" (7.21mm)
AX97-40100 FIXED IND 10UH 6.5A 20 MOHM SMD Triad Magnetics	3,131	-	RFQ	Datasheet	AX97	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	10 µH	±20%	6.5 A	-	Unshielded	20mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.634" L x 0.622" W (16.10mm x 15.80mm)	0.284" (7.21mm)
AX97-40101 FIXED IND 100UH 2A 150 MOHM SMD Triad Magnetics	4,674	-	RFQ	Datasheet	AX97	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	100 µH	±20%	2 A	-	Unshielded	150mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.634" L x 0.622" W (16.10mm x 15.80mm)	0.284" (7.21mm)
AX97-40150 FIXED IND 15UH 5.3A 30 MOHM SMD Triad Magnetics	4,981	-	RFQ	Datasheet	AX97	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	15 µH	±20%	5.3 A	-	Unshielded	30mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.634" L x 0.622" W (16.10mm x 15.80mm)	0.284" (7.21mm)
AX97-40220 FIXED IND 22UH 4.4A 40 MOHM SMD Triad Magnetics	1,881	-	RFQ	Datasheet	AX97	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	22 µH	±20%	4.4 A	-	Unshielded	40mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.634" L x 0.622" W (16.10mm x 15.80mm)	0.284" (7.21mm)
AX97-40221 FIXED IND 220UH 1.3A 330MOHM SMD Triad Magnetics	1,465	-	RFQ	Datasheet	AX97	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	220 µH	±20%	1.3 A	-	Unshielded	330mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.634" L x 0.622" W (16.10mm x 15.80mm)	0.284" (7.21mm)
AX97-40330 FIXED IND 33UH 3.5A 60 MOHM SMD Triad Magnetics	4,681	-	RFQ	Datasheet	AX97	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	33 µH	±20%	3.5 A	-	Unshielded	60mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	SMD	0.634" L x 0.622" W (16.10mm x 15.80mm)	0.284" (7.21mm)

WINSUN SOURCING SUPPORT

Need Help Sourcing Fixed Inductors?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Fixed Inductors FAQ

Common questions about filtering, comparing and sourcing Fixed Inductors components.

How can I narrow the Fixed Inductors selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
