Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP3232DZER4R7M01FIXED IND 4.7UH 7.25A 32MOHM SMD |
1,568 | - |
|
Datasheet | IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 7.25 A | 15A | Shielded | 32mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
IHLP4040DZER1R8M11FIXED IND 1.8UH 17A 5 MOHM SMD |
3,391 | - |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 17 A | 16A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER6R8M11FIXED IND 6.8UH 7A 33.4 MOHM SMD |
2,313 | - |
|
Datasheet | IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 7 A | 6.7A | Shielded | 33.4mOhm Max | - | 13MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER330M8AFIXED IND 33UH 3.7A 117.7MOHM SM |
5,433 | - |
|
Datasheet | IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.7 A | 4.2A | Shielded | 117.7mOhm Max | - | 5.79MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER2R0M11FIXED IND 2UH 16A 5.8 MOHM SMD |
2,721 | - |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2 µH | ±20% | 16 A | 14A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
IHLP3232CZER100M11FIXED IND 10UH 5.3A 55.1MOHM SMD |
1,277 | - |
|
Datasheet | IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.3 A | 3.8A | Shielded | 55.1mOhm Max | - | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
|
IHLP4040DZER330M11FIXED IND 33UH 4.4A 94.5MOHM SMD |
915 | - |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 4.4 A | 4A | Shielded | 94.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER1R5M01FIXED IND 1.5UH 15A 5.8 MOHM SMD |
1,744 | - |
|
Datasheet | IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 15 A | 27.5A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

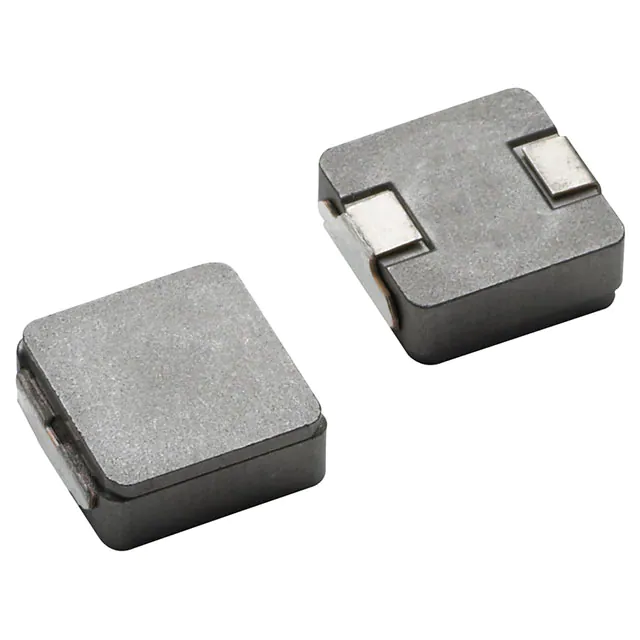

IHLP4040DZER680M5AIHLP-4040DZ-5A 68 20% ER E3 |
5,944 | - |
|
Datasheet | IHLP-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 68 µH | ±20% | 2.4 A | 3.5A | Shielded | 252mOhm Max | - | 4.02MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
IHLE2020CDER4R7M5AIHLE-2020CD-5A 4.7 20% ER E3 |
5,814 | - |
|
Datasheet | IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 4.1 A | 6A | Shielded | 78.3mOhm Max | - | 23.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
