Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

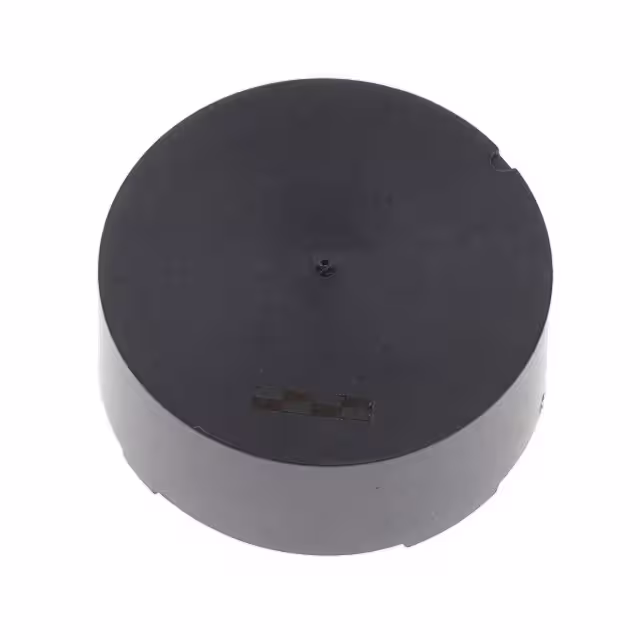

IHTH1125MZEB101M5AFIXED IND 100UH 9.2A 32.2MOHM TH |
1,579 | - |
|
Datasheet | IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 100 µH | ±20% | 9.2 A | 11A | Shielded | 32.2mOhm Max | - | 2.04MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
IHTH1125MZEB1R0M5AFIXED IND 1UH 86A 0.48 MOHM TH |
3,603 | - |
|
Datasheet | IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 1 µH | ±20% | 86 A | 69A | Shielded | 0.48mOhm Max | - | 29.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHTH1125MZEB2R2M5AFIXED IND 2.2UH 71.5A 0.77 MOHM |
4,281 | - |
|
Datasheet | IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 2.2 µH | ±20% | 71.5 A | 64A | Shielded | 0.77mOhm Max | - | 17.25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHB3EB5R6MFIXED IND 5.6UH 20.3A 3 MOHM TH |
3,984 | - |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 5.6 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3EB8R2MFIXED IND 8.2UH 17.6A 4 MOHM TH |
1,783 | - |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 8.2 µH | ±20% | 17.6 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHTH1125MZEBR47M5AFIXED IND 470NH 105MA 0.3MOHM TH |
2,933 | - |
|
Datasheet | IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tube | Active | - | - | 470 nH | ±20% | 105 mA | 80mA | Shielded | 0.3mOhm Max | - | 57.25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHB3BV1R0MFIXED IND 1UH 20.3A 3 MOHM TH |
1,178 | - |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 1 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV3R3MFIXED IND 3.3UH 20.3A 3 MOHM TH |
3,488 | - |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 3.3 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV4R7MFIXED IND 4.7UH 20.3A 3 MOHM TH |
4,906 | - |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 4.7 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV5R6MFIXED IND 5.6UH 20.3A 3 MOHM TH |
1,067 | - |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 5.6 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
