Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

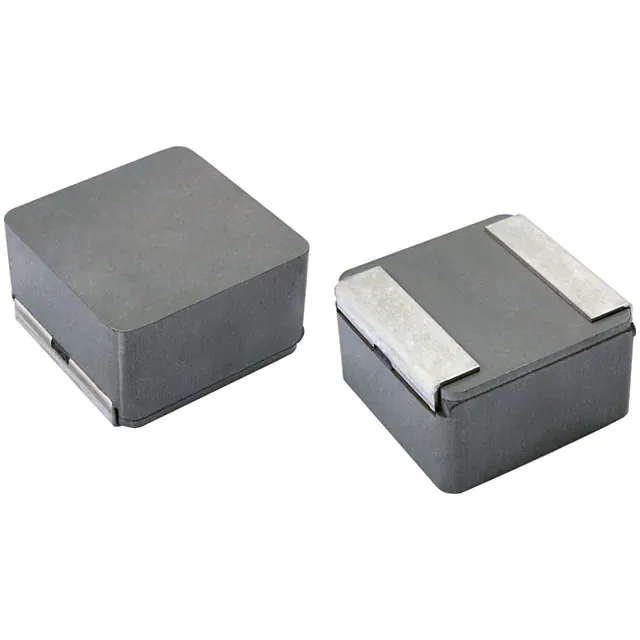

IHLP8787MZER820M5AFIXED IND 82UH 10.2A 34.2MOHM SM |
227 | - |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 10.2 A | 9A | Shielded | 34.2mOhm Max | - | 2.07MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHLP8787MZER2R2M51FIXED IND 2.2UH 58A 1.25MOHM SMD |
579 | - |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 58 A | 48A | Shielded | 1.25mOhm Max | - | 17.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER4R7M51FIXED IND 4.7UH 47A 1.84MOHM SMD |
468 | - |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 47 A | 37A | Shielded | 1.84mOhm Max | - | 10.2MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER3R3M51FIXED IND 3.3UH 49A 1.77MOHM SMD |
333 | - |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 49 A | 41A | Shielded | 1.77mOhm Max | - | 12.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEB330M5AFIXED IND 33UH 15.9A 11.3MOHM TH |
249 | - |
|
Datasheet | IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 33 µH | ±20% | 15.9 A | 18A | Shielded | 11.3mOhm Max | - | 4.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
|
IHTH1125KZEB1R0M5AFIXED IND 1UH 90A 0.5 MOHM TH |
115 | - |
|
Datasheet | IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 1 µH | ±20% | 90 A | 65A | Shielded | 0.5mOhm Max | - | 29.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
IHDF1300AEEH4R7K1AFIXED IND 4.7UH 59A 1.11MOHM TH |
120 | - |
|
Datasheet | IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 59 A | 92A | Unshielded | 1.11mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
IHDM1008BCEV4R7M30FIXED IND 4.7UH 45A 0.95 MOHM TH |
541 | - |
|
Datasheet | IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 62 A | 100A | Unshielded | 0.95mOhm Max | - | 35MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
IHDM1008BCEV2R2M3AIHDM1008BC-3A 2.2 UH 20% EV |
919 | - |
|
Datasheet | IHDM-1008BC-3A | Nonstandard | Tray | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 70 A | 110A | Unshielded | 0.4mOhm Max | - | 45MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
IHXL1500VZEBR68M51FIXED IND 680NH 235A 0.13MOHM TH |
103 | - |
|
Datasheet | IHXL-1500VZ-51 | Nonstandard | Bulk | Active | - | - | 680 nH | ±20% | 235 A | - | Shielded | 0.13mOhm Max | - | - | - | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
