Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

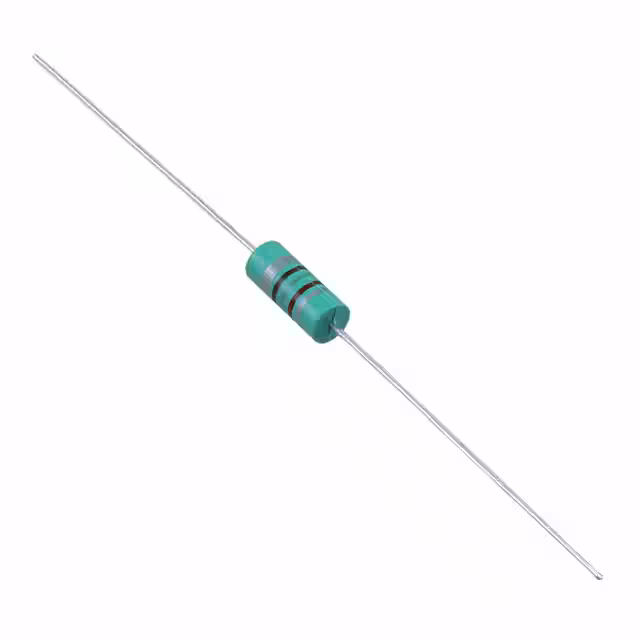

IMS05ST5R6JFIXED IND 5.6UH 335MA 720MOHM TH |
4,376 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 5.6 µH | ±5% | 335 mA | - | Shielded | 720mOhm Max | 44 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST5R6KFIXED IND 5.6UH 335MA 720MOHM TH |
3,502 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 5.6 µH | ±10% | 335 mA | - | Shielded | 720mOhm Max | 44 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST680KFIXED IND 68UH 170MA 2.7 OHM TH |
3,384 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 68 µH | ±10% | 170 mA | 150mA | Shielded | 2.7Ohm Max | 50 @ 2.5MHz | 21MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST682KFIXED IND 6.8MH 27MA 111 OHM TH |
1,414 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 6.8 mH | ±10% | 27 mA | 16mA | Shielded | 111Ohm Max | 40 @ 250kHz | 660kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST6R8KFIXED IND 6.8UH 280MA 1.02OHM TH |
3,918 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 6.8 µH | ±10% | 280 mA | - | Shielded | 1.02Ohm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST821KFIXED IND 820UH 80MA 13 OHM TH |
2,350 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 820 µH | ±10% | 80 mA | 45mA | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST8R2KFIXED IND 8.2UH 250MA 1.32OHM TH |
2,998 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 8.2 µH | ±10% | 250 mA | - | Shielded | 1.32Ohm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05STR10KFIXED IND 100NH 1.79A 25 MOHM TH |
2,937 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Phenolic | 100 nH | ±10% | 1.79 A | - | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05STR12JFIXED IND 120NH 1.53A 34 MOHM TH |
4,694 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Phenolic | 120 nH | ±5% | 1.53 A | - | Shielded | 34mOhm Max | 51 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05STR22KFIXED IND 220NH 1.1A 67 MOHM TH |
1,658 | - |
|
Datasheet | IMS-5 | Axial | - | Obsolete | Molded | Phenolic | 220 nH | ±10% | 1.1 A | - | Shielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
