Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020ABERR10M01FIXED IND 100NH 13.5A 4.6MOHM SM |
7,998 | - |
|
Datasheet | IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 13.5 A | 35A | Shielded | 4.6mOhm Max | - | 256MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
IHLP2020ABERR47M01FIXED IND 470NH 6.5A 19.2MOHM SM |
4,007 | - |
|
Datasheet | IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 6.5 A | 18A | Shielded | 19.2mOhm Max | - | 108MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
IHLP1616BZER2R2M1AIHLP-1616BZ-1A 2.2 20% ER E3 |
3,950 | - |
|
Datasheet | IHLP-1616BZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 3.25 A | 3.25A | Shielded | 48mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IMC1812ER221KFIXED IND 220UH 100MA 10 OHM SMD |
814 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

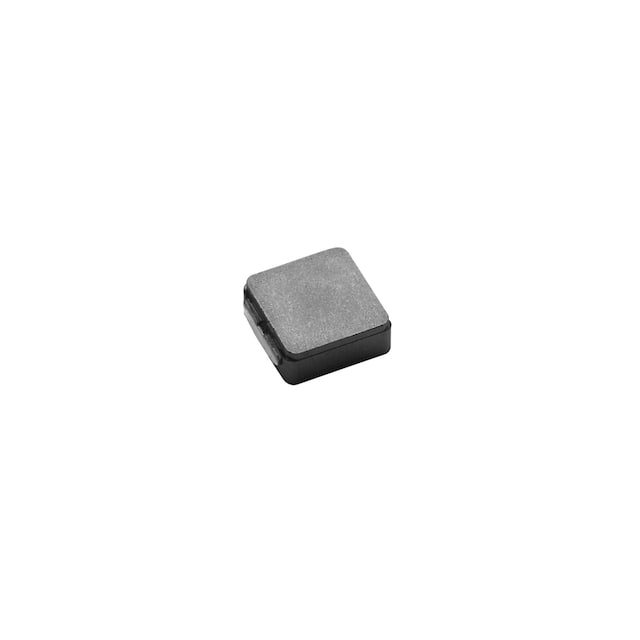

IHLP2020BZERR47M5AFIXED IND 470NH 13.43A 7.8 MOHM |
194 | - |
|
Datasheet | IHLP-2020BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 13.43 A | 9.35A | Shielded | 7.8mOhm Max | - | 101.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP2020BZER6R8M51IHLP-2020BZ-51 6.8 20% ER E3 |
1,921 | - |
|
Datasheet | IHLP-2020BZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 2.8 A | 2.6A | Shielded | 135.8mOhm Max | - | 24.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP5050FDERR47M8AIHLP-5050FD-8A .47 20% ER E3 |
455 | - |
|
Datasheet | IHLP-5050FD-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 54 A | 42A | Shielded | 1.16mOhm Max | - | 65.6MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
IHLP2020CZER2R2M51IHLP-2020CZ-51 2.2 20% ER E3 |
1,784 | - |
|
Datasheet | IHLP-2020CZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 6.6 A | 6.3A | Shielded | 26mOhm Max | - | 39.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IMC1812ER6R8KFIXED IND 6.8UH 285MA 1.2OHM SMD |
990 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±10% | 285 mA | - | Unshielded | 1.2Ohm Max | 50 @ 7.96MHz | 27MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IHLP2020BZER1R0MA1IHLP-2020BZ-A1 1 20% ER E3 |
2,975 | - |
|
Datasheet | IHLP-2020BZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 7 A | 16A | Shielded | 20mOhm Max | - | 62MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
