Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443631500FIXED IND 15UH 14A 8.7 MOHM SMD |
2,499 | - |
|
Datasheet | WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±15% | 14 A | 21A | Shielded | 8.7mOhm | - | 12.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.858" L x 0.846" W (21.80mm x 21.50mm) | 0.571" (14.50mm) |
|
|
7443634700FIXED IND 47UH 12A 12.2 MOHM SMD |
1,546 | - |
|
Datasheet | WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±15% | 12 A | 8.5A | Shielded | 12.2mOhm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.858" L x 0.846" W (21.80mm x 21.50mm) | 0.571" (14.50mm) |
|
|
7443633300FIXED IND 33UH 12A 11.4 MOHM SMD |
1,001 | - |
|
Datasheet | WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±15% | 12 A | 11A | Shielded | 11.4mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.858" L x 0.846" W (21.80mm x 21.50mm) | 0.571" (14.50mm) |
|
74437529203220FIXED IND 22UH 23.9A 4.9MOHM SMD |
945 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 23.9 A | 21.7A | Shielded | 4.9mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203101FIXED IND 100UH 11.2A 22.9 MOHM |
370 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 µH | ±20% | 11.2 A | 9.4A | Shielded | 22.9mOhm | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203680FIXED IND 68UH 17A 10.3 MOHM SMD |
358 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 68 µH | ±20% | 17 A | 10.6A | Shielded | 10.3mOhm | - | 5.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437429203470FIXED IND 47UH 12A 19.3 MOHM SMD |
227 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 12 A | 13.5A | Shielded | 19.3mOhm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|

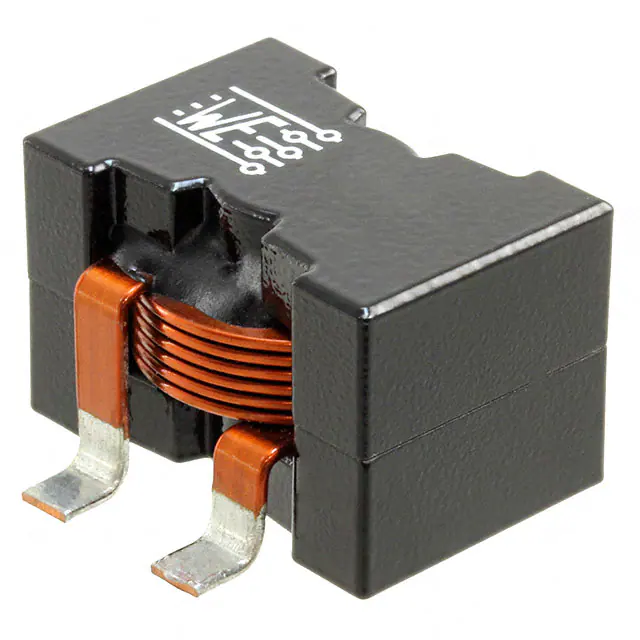

7443642200FIXED IND 22UH 30A 2.4 MOHM SMD |
3,129 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±15% | 30 A | 18A | Shielded | 2.4mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|
|
7443641500FIXED IND 15UH 30A 2.4 MOHM SMD |
1,546 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±15% | 30 A | 26A | Shielded | 2.4mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|
|
7443641000FIXED IND 10UH 30A 2.4 MOHM SMD |
289 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±15% | 30 A | 37A | Shielded | 2.4mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
