Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744045180FIXED IND 18UH 680MA 600MOHM SMD |
7,510 | - |
|
Datasheet | WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 680 mA | 1.1A | Unshielded | 600mOhm Max | 42 @ 1MHz | 22MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
.jpg "74479763168")
|
74479763168FIXED IND 680NH 1A 225 MOHM SMD |
7,082 | - |
|
Datasheet | WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 680 nH | ±20% | 1 A | 950mA | Shielded | 225mOhm Max | 10 @ 1MHz | 190MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
744045330FIXED IND 33UH 430MA 1.1 OHM SMD |
2,192 | - |
|
Datasheet | WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 430 mA | 850mA | Unshielded | 1.1Ohm Max | 55 @ 1MHz | 18MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

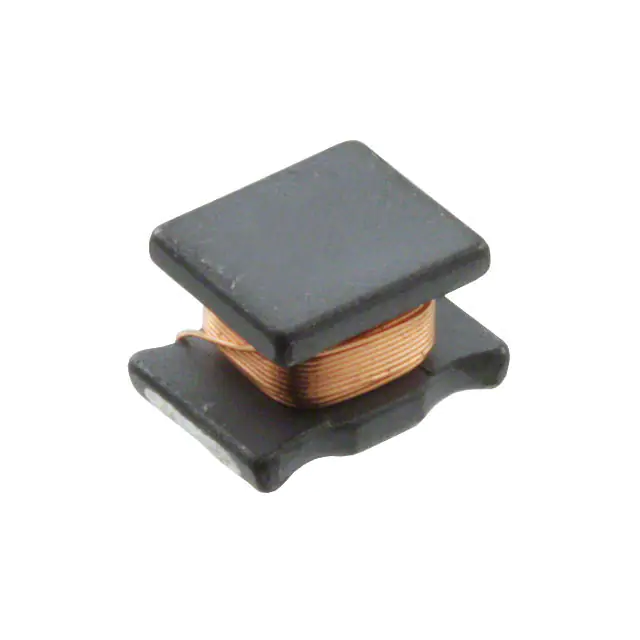

744045210FIXED IND 100UH 270MA 2.5OHM SMD |
2,184 | - |
|
Datasheet | WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 270 mA | 450mA | Unshielded | 2.5Ohm Max | 60 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
744045150FIXED IND 15UH 730MA 500MOHM SMD |
1,677 | - |
|
Datasheet | WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 730 mA | 1.24A | Unshielded | 500mOhm Max | 45 @ 1MHz | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
74479775222AFIXED IND 2.2UH 1A 250 MOHM SMD |
1,550 | - |
|
Datasheet | WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 1 A | 700mA | Unshielded | 250mOhm Max | 23 @ 1MHz | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
.jpg "74479774210")
|
74479774210FIXED IND 1UH 1.1A 190 MOHM SMD |
14,381 | - |
|
Datasheet | WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.1 A | 500mA | Shielded | 190mOhm | 12 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
74479774222FIXED IND 2.2UH 700MA 340MOHM SM |
9,498 | - |
|
Datasheet | WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 700 mA | 250mA | Shielded | 340mOhm | 15 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|

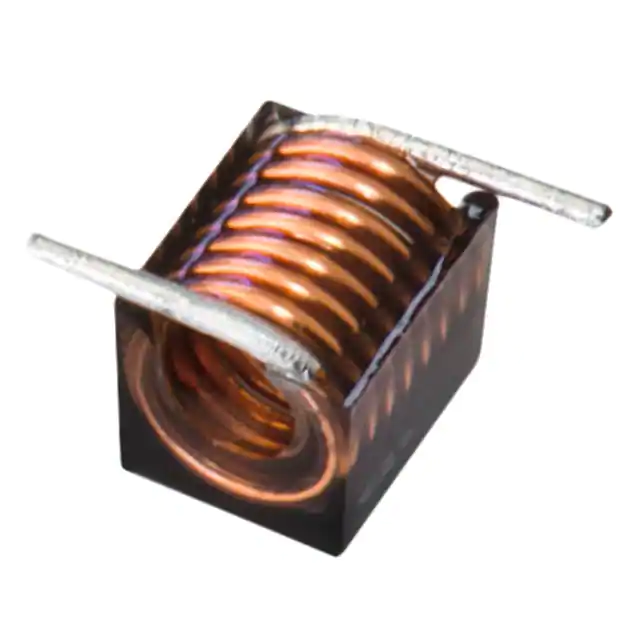

744910016FIXED IND 1.65NH 1.6A 4 MOHM SMD |
1,241 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 1.65 nH | ±10% | 1.6 A | - | Unshielded | 4mOhm Max | 100 @ 800MHz | 10GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1322 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|
7447462102FIXED IND 1MH 250MA 6 OHM TH |
9,938 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 250 mA | 270mA | Unshielded | 6Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
