Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

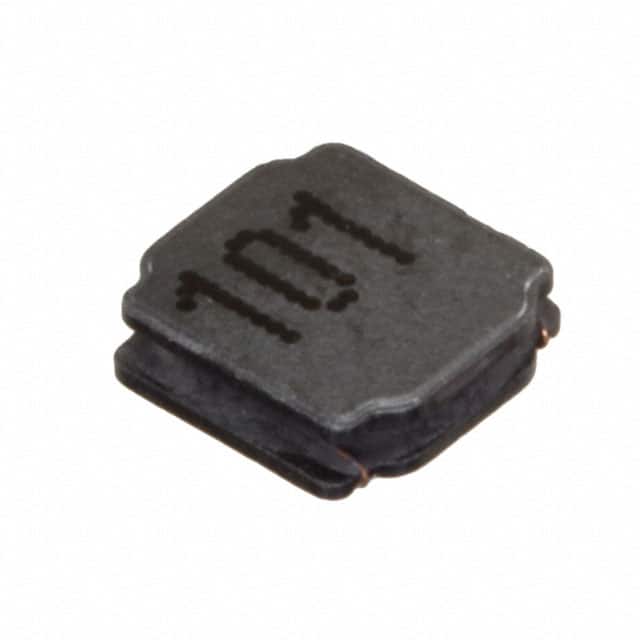

74404041101FIXED IND 100UH 430MA 1.697 OHM |
445 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 430 mA | 300mA | Shielded | 1.697Ohm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
1.2mm.jpg "74438334010")
|
74438334010FIXED IND 1UH 2.75A 50.5MOHM SMD |
272 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 2.75 A | 6.6A | Shielded | 50.5mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404024470WE-LQS SMT SEMI-SHIELDED POWER I |
3,622 | - |
|
Datasheet | WE-LQS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 0.33 A | 350mA | Shielded | 1.65Ohm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74404032101WE-LQS SMT SEMI-SHIELDED POWER I |
1,709 | - |
|
Datasheet | WE-LQS | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 0.3 A | 260mA | Shielded | 1.9Ohm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
744912147FIXED IND 47NH 3A 5.6 MOHM SMD |
2,002 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 3 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912210FIXED IND 100NH 1.7A 12.3MOHM SM |
1,203 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±5% | 1.7 A | - | Unshielded | 12.3mOhm Max | 100 @ 150MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912133FIXED IND 33NH 3A 4.8 MOHM SMD |
860 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 33 nH | ±5% | 3 A | - | Unshielded | 4.8mOhm Max | 100 @ 150MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912139FIXED IND 39NH 3A 4.4 MOHM SMD |
610 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 39 nH | ±5% | 3 A | - | Unshielded | 4.4mOhm Max | 100 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|

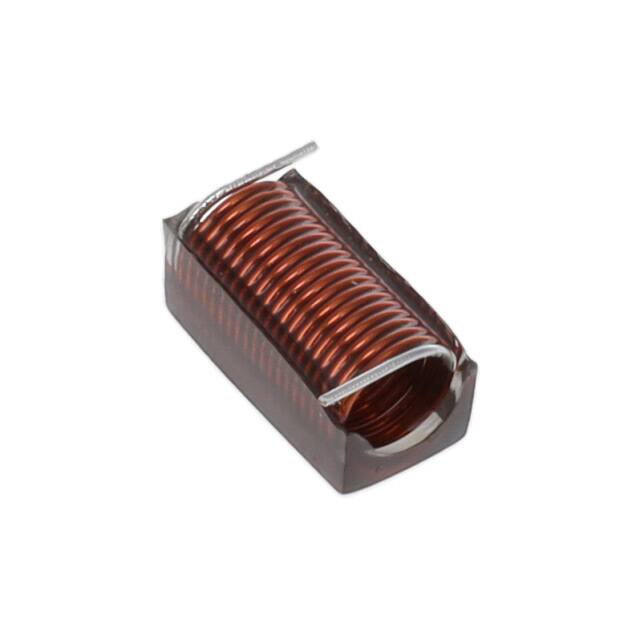

744918254FIXED IND 538NH 2A 90 MOHM SMD |
601 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 538 nH | ±5% | 2 A | - | Unshielded | 90mOhm Max | 100 @ 50MHz | 490MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
|
744912156FIXED IND 56NH 3A 6.2 MOHM SMD |
454 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 56 nH | ±5% | 3 A | - | Unshielded | 6.2mOhm Max | 100 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
