Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74431435012FIXED IND 120NH 31A 0.00028OHM |
2,026 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 31 A | 71.3A | Shielded | 0.28mOhm | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1435 | 0.537" L x 0.531" W (13.65mm x 13.50mm) | 0.146" (3.70mm) |
|
|
74431435018FIXED IND 180NH 31A 0.00028OHM |
3,231 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 180 nH | ±20% | 31 A | 58.4A | Shielded | 0.28mOhm | - | 63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1435 | 0.537" L x 0.531" W (13.65mm x 13.50mm) | 0.146" (3.70mm) |
|
74431323016FIXED IND 160NH 26A 0.0007OHM SM |
1,818 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 160 nH | ±15% | 26 A | 35.1A | Shielded | 0.7mOhm | - | 113MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1323 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.091" (2.30mm) |
|
|
74431323012FIXED IND 120NH 26A 0.0007OHM SM |
2,962 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±15% | 26 A | 47.8A | Shielded | 0.7mOhm | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1323 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.091" (2.30mm) |
|
7843340033FIXED IND 330NH 21A 2.1MOHM SMD |
3,602 | - |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 21 A | 36A | Shielded | 2.1mOhm Max | - | 196MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
|
7843340047FIXED IND 470NH 19A 2.8MOHM SMD |
1,454 | - |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 19 A | 29.7A | Shielded | 2.8mOhm Max | - | 146MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
831751500FIXED IND 1.5UH 20A 4.1 MOHM SMD |
2,290 | - |
|
Datasheet | WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 1.5 µH | ±10% | 20 A | 45A | Shielded | 4.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - |
|

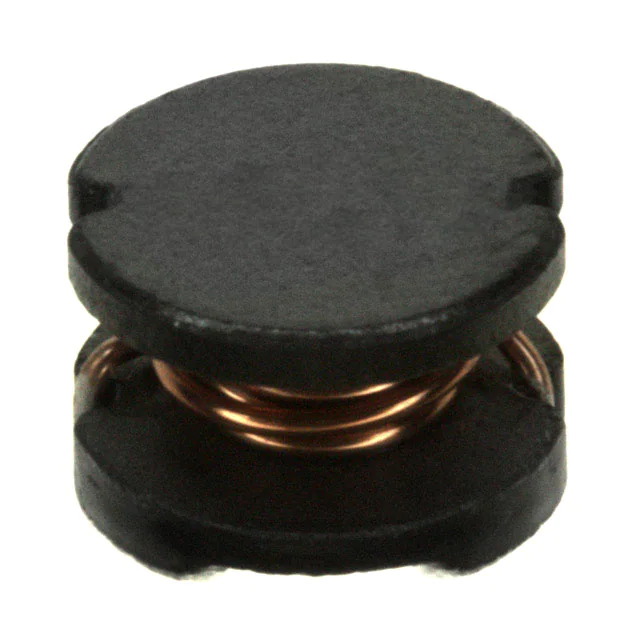

784775022FIXED IND 2.2UH 6A 10 MOHM SMD |
2,464 | - |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6 A | 6A | Unshielded | 10mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775033FIXED IND 3.3UH 4.9A 14 MOHM SMD |
1,329 | - |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.9 A | 4.9A | Unshielded | 14mOhm Max | - | 57MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
750341595FIXED IND 700UH 1.329 OHM TH |
3,068 | - |
|
Datasheet | MID-DC16US | Radial, Vertical, 4 Leads | Tray | Active | - | - | 700 µH | ±5% | - | - | - | 1.329Ohm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Through Hole | - | 0.580" L x 0.580" W (14.73mm x 14.73mm) | 0.600" (15.24mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
