Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "2-2176075-3")
|
2-2176075-3FIXED IND 2.3NH 150MA 800MOHM SM |
1,653 | - |
|
Datasheet | 3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.3 nH | ±0.2nH | 150 mA | - | Unshielded | 800mOhm Max | 8 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
2-2176075-5FIXED IND 2.5NH 150MA 800MOHM SM |
4,852 | - |
|
Datasheet | 3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.5 nH | ±0.2nH | 150 mA | - | Unshielded | 800mOhm Max | 8 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
2-2176075-7FIXED IND 2.7NH 150MA 800MOHM SM |
2,301 | - |
|
Datasheet | 3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.7 nH | ±0.2nH | 150 mA | - | Unshielded | 800mOhm Max | 8 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
2176075-3FIXED IND 0.3NH 400MA 200MOHM SM |
3,947 | - |
|
Datasheet | 3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.3 nH | ±0.2nH | 400 mA | - | Unshielded | 200mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
2176075-2FIXED IND 0.2NH 400MA 200MOHM SM |
3,834 | - |
|
Datasheet | 3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.2 nH | ±0.2nH | 400 mA | - | Unshielded | 200mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
.jpg "36401E0N8ATDF")
|
36401E0N8ATDFFIXED IND 0.8NH 700MA 150MOHM SM |
5,335 | - |
|
Datasheet | 3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.8 nH | ±0.2nH | 700 mA | - | Unshielded | 150mOhm Max | 13 @ 500MHz | 14GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
36502C8R2JTDGFIXED IND 8.2UH 170MA 6 OHM SMD |
3,183 | - |
|
Datasheet | 3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.2 µH | ±5% | 170 mA | - | Unshielded | 6Ohm Max | 15 @ 7.96MHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
3625B331KTFIXED IND 330UH 620MA 950MOHM SM |
4,561 | - |
|
Datasheet | 3625, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±10% | 620 mA | 700mA | Unshielded | 950mOhm Max | 12 @ 796kHz | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.189" (4.80mm) |
|
|
3632B103LTFIXED IND 10MH 95MA 26 OHM SMD |
6,000 | - |
|
Datasheet | 3632, Sigma Inductors | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 95 mA | - | Shielded | 26Ohm Max | 110 @ 79.6kHz | 500kHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|

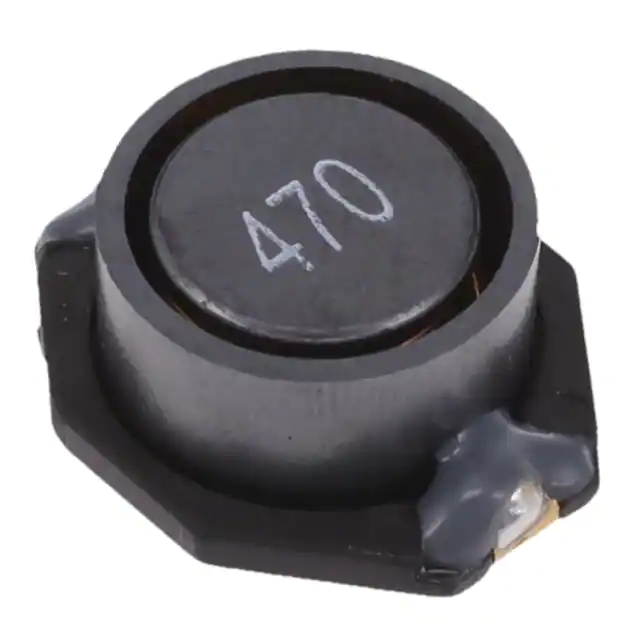

MGDS5-00005-PFIXED IND 47UH 2.4A 97 MOHM SMD |
998 | - |
|
Datasheet | MGDS5, Coev | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.4 A | 4A | Shielded | 97mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.25mm) | 0.300" (7.62mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
