Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-5GM470MFIXED IND 47UH 390MA 930MOHM SMD |
4,771 | - |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 390 mA | - | Shielded | 930mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|

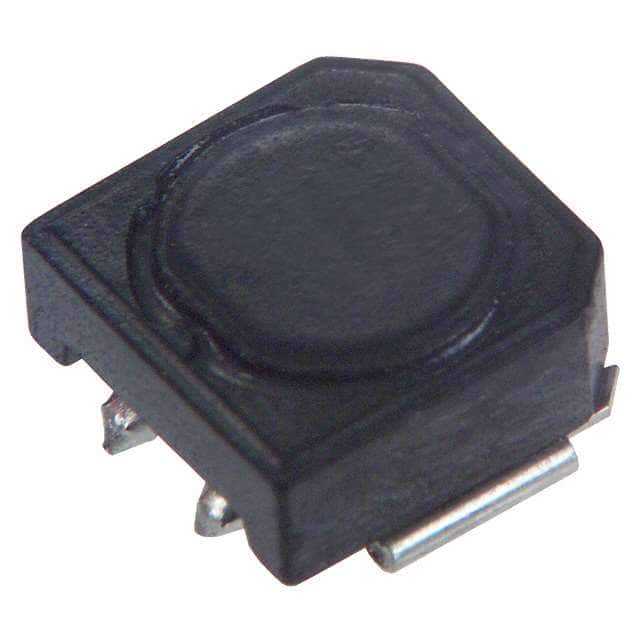

ELL-6SH681MFIXED IND 680UH 160MA 4.3OHM SMD |
2,207 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 µH | ±20% | 160 mA | - | Shielded | 4.3Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
ETQ-A17B330FIXED IND 33UH 6A 17 MOHM TH |
4,949 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 6 A | - | Unshielded | 17mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.709" (18.00mm) |
|
|
ETQ-A17B220FIXED IND 22UH 8A 17 MOHM TH |
2,253 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 8 A | - | Unshielded | 17mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.709" (18.00mm) |
|
|
ETQ-A15B220FIXED IND 22UH 7A 15 MOHM TH |
3,424 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 7 A | - | Unshielded | 15mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.630" (16.00mm) |
|
|
ETQ-A15B330FIXED IND 33UH 4A 15 MOHM TH |
4,112 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 4 A | - | Unshielded | 15mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.630" (16.00mm) |
|
ELC-06D2R2EFIXED IND 2.2UH 3.4A 26 MOHM TH |
3,310 | - |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 2.2 µH | ±20% | 3.4 A | - | Unshielded | 26mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D2R7EFIXED IND 2.7UH 3.2A 28 MOHM TH |
3,358 | - |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 2.7 µH | ±20% | 3.2 A | - | Unshielded | 28mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D3R3EFIXED IND 3.3UH 3A 27 MOHM TH |
1,859 | - |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 3.3 µH | ±20% | 3 A | - | Unshielded | 27mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D4R7EFIXED IND 4.7UH 2.6A 33 MOHM TH |
2,221 | - |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 4.7 µH | ±20% | 2.6 A | - | Unshielded | 33mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
