Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-18E680LFIXED IND 68UH 3.6A 36 MOHM TH |
4,823 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 3.6 A | - | Shielded | 36mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E681LFIXED IND 680UH 1.2A 190 MOHM TH |
4,746 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.2 A | - | Shielded | 190mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E6R8LFIXED IND 6.8UH 6.5A 13 MOHM TH |
4,261 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.5 A | - | Shielded | 13mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E820LFIXED IND 82UH 3.5A 40 MOHM TH |
2,070 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 3.5 A | - | Shielded | 40mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E821LFIXED IND 820UH 1.1A 210 MOHM TH |
4,569 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 1.1 A | - | Shielded | 210mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E8R2LFIXED IND 8.2UH 6.2A 13 MOHM TH |
3,632 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 6.2 A | - | Shielded | 13mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|

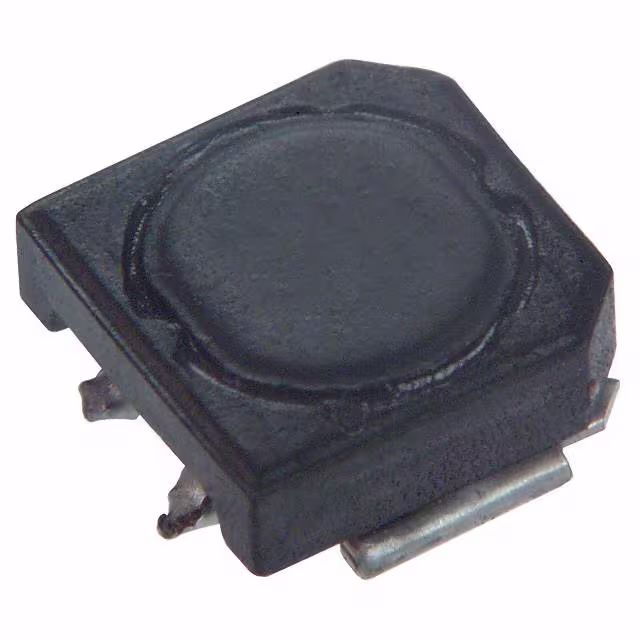

ELL-6RH4R7MFIXED IND 4.7UH 1.58A 49MOHM SMD |
3,456 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 1.58 A | - | Shielded | 49mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.110" (2.80mm) |
|
ELL-SFG3R3NAFIXED IND 3.3UH 1.15A 110MOHM SM |
1,383 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.15 A | 1.1A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG4R7NAFIXED IND 4.7UH 1.1A 130MOHM SMD |
3,549 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.1 A | 1A | Shielded | 130mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG6R8NAFIXED IND 6.8UH 950MA 180MOHM SM |
4,595 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 950 mA | 800mA | Shielded | 180mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
