Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ3218-3R3-70-TFIXED IND 3.3UH 70A 1.1 MOHM TH |
207 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 3.3 µH | - | 70 A | 80A | Unshielded | 1.1mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|
PQ3218-6R0-50-TFIXED IND 6UH 50A 1.5 MOHM TH |
802 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 6 µH | - | 50 A | 57A | Unshielded | 1.5mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|

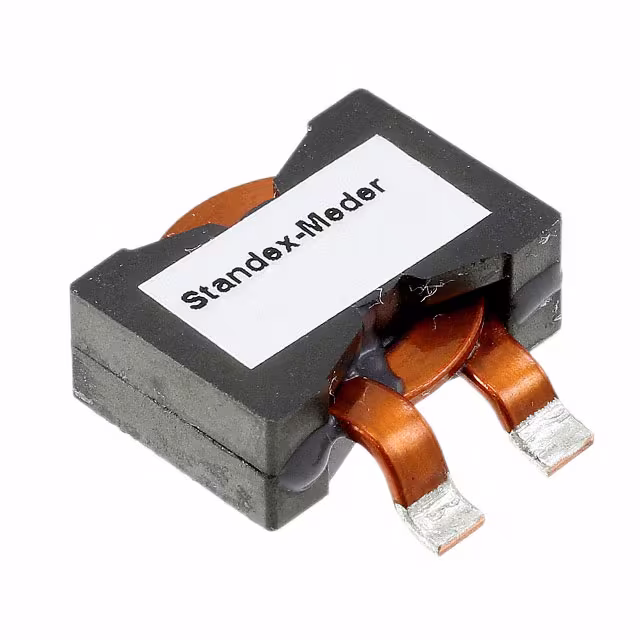

PQ2007-0R4-70-GFIXED IND 400NH 70A 0.7 MOHM SMD |
4,960 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 400 nH | - | 70 A | 83A | Unshielded | 0.7mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|

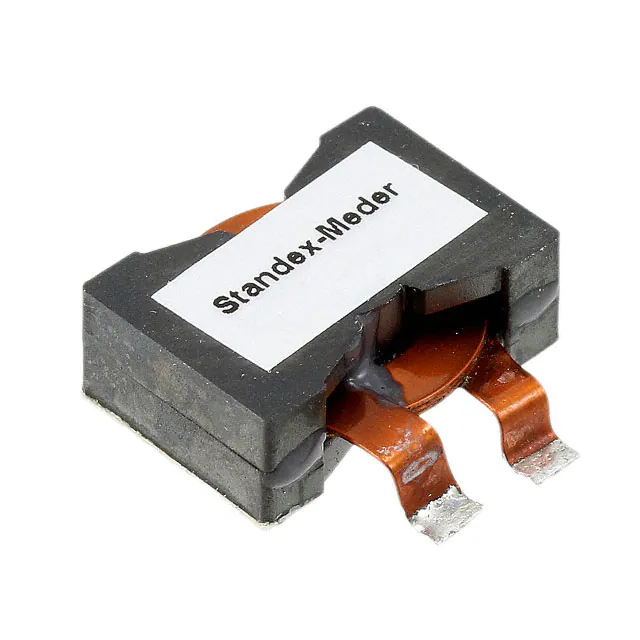

PQ2007-2R2-25-GFIXED IND 2.2UH 25A 3.5 MOHM SMD |
4,210 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 2.2 µH | - | 25 A | 32A | Unshielded | 3.5mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|

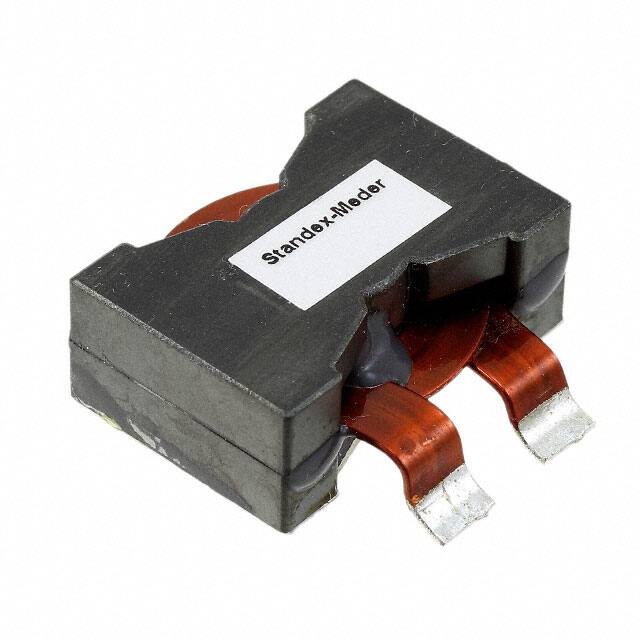

PQ3213-0R9-70-GFIXED IND 900NH 70A 1 MOHM SMD |
2,589 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 900 nH | - | 70 A | 110A | Unshielded | 1mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 1.043" L x 0.748" W (26.50mm x 19.00mm) | 0.520" (13.20mm) |
|
PQ3218-3R3-90-TFIXED IND 3.3UH 70A 1.1 MOHM TH |
3,315 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 3.3 µH | - | 70 A | 80A | Unshielded | 1.1mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|

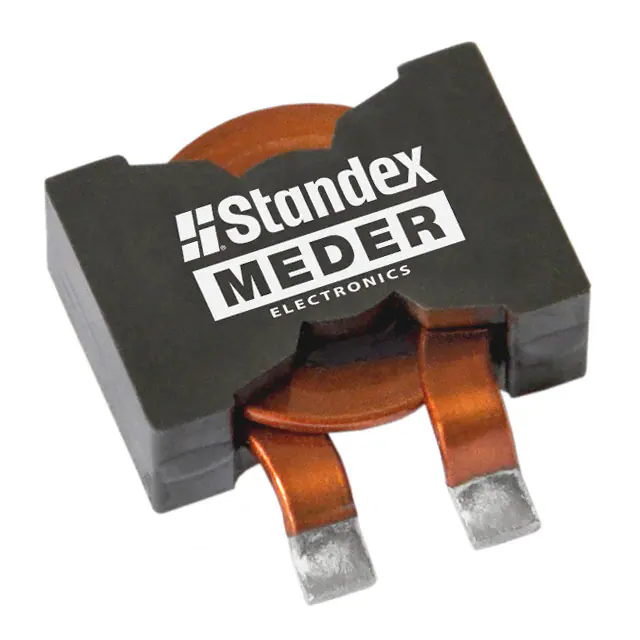

PQ2006-1R0-30-GFIXED IND 1UH 30A 1 MOHM SMD |
3,810 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 1 µH | - | 30 A | 39A | Unshielded | 1mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|
PQ2613-1R0-80-GFIXED IND 1UH 80A 1.2 MOHM SMD |
4,105 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 1 µH | - | 80 A | 120A | Unshielded | 1.2mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 1.043" L x 0.748" W (26.50mm x 19.00mm) | 0.520" (13.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
