Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYA40203R3M-10FIXED IND 3.3UH 3.4A 88 MOHM SMD |
3,539 | - |
|
Datasheet | TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3.4 A | 4.7A | Shielded | 88mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
TYS40301R0N-10FIXED IND 1UH 4.15A 18.2MOHM SMD |
98,262 | - |
|
Datasheet | TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 4.15 A | 5.26A | Shielded | 18.2mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

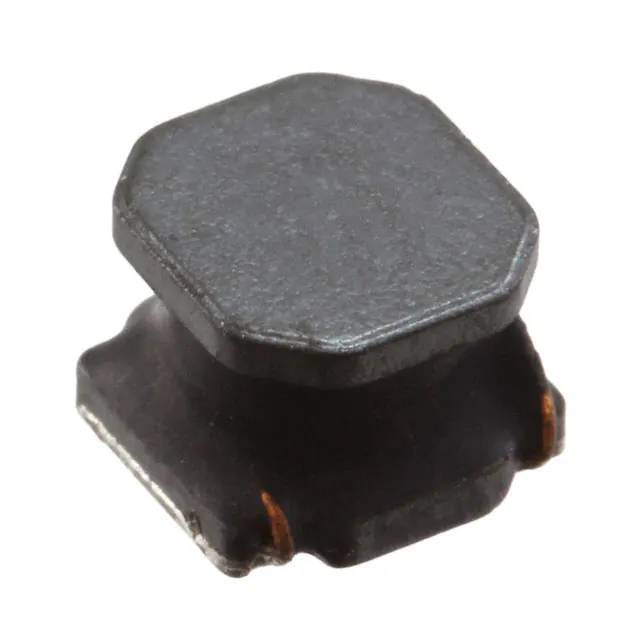

TYS5040100M-10FIXED IND 10UH 2.1A 64 MOHM SMD |
9,056 | - |
|
Datasheet | TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.1 A | 2.35A | Shielded | 64mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|

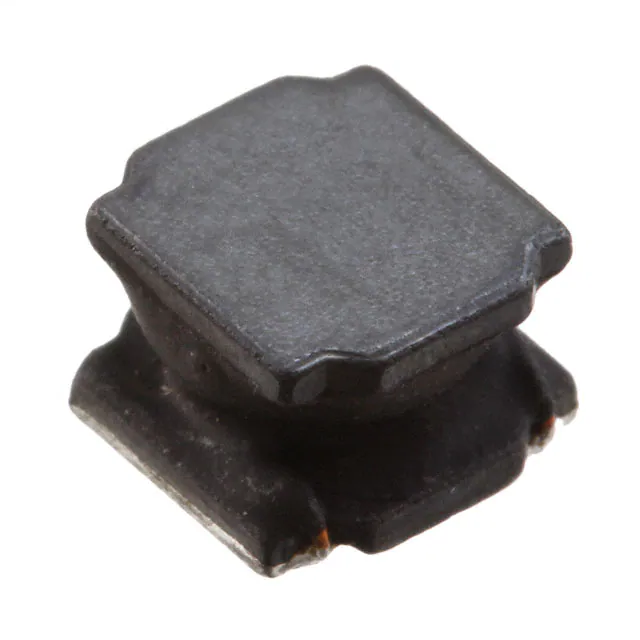

TYS6045680M-10FIXED IND 68UH 1A 289 MOHM SMD |
90,197 | - |
|
Datasheet | TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1 A | 1.2A | Shielded | 289mOhm | - | 6.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
DI2220V301R-10FIXED IND 300NH 8A 10 MOHM SMD |
10,431 | - |
|
Datasheet | DI | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±10% | 8 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.220" L x 0.200" W (5.59mm x 5.08mm) | 0.152" (3.86mm) |
|
CPI0603A100R-10MULTILAYER FERRITE CHIP POWER IN |
33,162 | - |
|
Datasheet | CPI0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 110 mA | - | Unshielded | 520mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
TYA252012100M-10FIXED IND 10UH 850MA 480MOHM SMD |
9,868 | - |
|
Datasheet | TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 850 mA | 1.1A | Shielded | 480mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.053" (1.35mm) |
|
|
TYS50402R2N-10FIXED IND 2.2UH 3.8A 19 MOHM SMD |
396,138 | - |
|
Datasheet | TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 3.8 A | 4.9A | Shielded | 19mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
TYS5040220M-10FIXED IND 22UH 1.5A 129 MOHM SMD |
150,633 | - |
|
Datasheet | TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.5 A | 1.6A | Shielded | 129mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
TYS6045101M-10FIXED IND 100UH 800MA 433MOHM SM |
59,604 | - |
|
Datasheet | TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 800 mA | 950mA | Shielded | 433mOhm | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
