Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1770TA-3R3MFIXED IND 3.3UH 28A 3.9 MOHM SMD |
12,533 | - |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 28 A | 45A | Shielded | 3.9mOhm Max | 20 @ 100kHz | 17MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-4R7MFIXED IND 4.7UH 25A 5.5 MOHM SMD |
4,421 | - |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 25 A | 41A | Shielded | 5.5mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-1R0MFIXED IND 1UH 52A 2 MOHM SMD |
1,734 | - |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 52 A | 60A | Shielded | 2mOhm Max | 20 @ 100kHz | 35MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-560MFIXED IND 56UH 7.8A 62 MOHM SMD |
674 | - |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 56 µH | ±20% | 7.8 A | 9A | Shielded | 62mOhm Max | 20 @ 100kHz | 3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-101MFIXED IND 100UH 5.3A 118MOHM SMD |
575 | - |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 100 µH | ±20% | 5.3 A | 6.5A | Shielded | 118mOhm Max | 20 @ 100kHz | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-330MFIXED IND 33UH 10.7A 44 MOHM SMD |
1,030 | - |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 10.7 A | 15A | Shielded | 44mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-680MFIXED IND 68UH 7A 80 MOHM SMD |
709 | - |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 68 µH | ±20% | 7 A | 8A | Shielded | 80mOhm Max | 20 @ 100kHz | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
2320-V-RCFIXED IND 470UH 3.8A 130 MOHM TH |
2,452 | - |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2309-V-RCFIXED IND 47UH 10.7A 16 MOHM TH |
1,631 | - |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 10.7 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

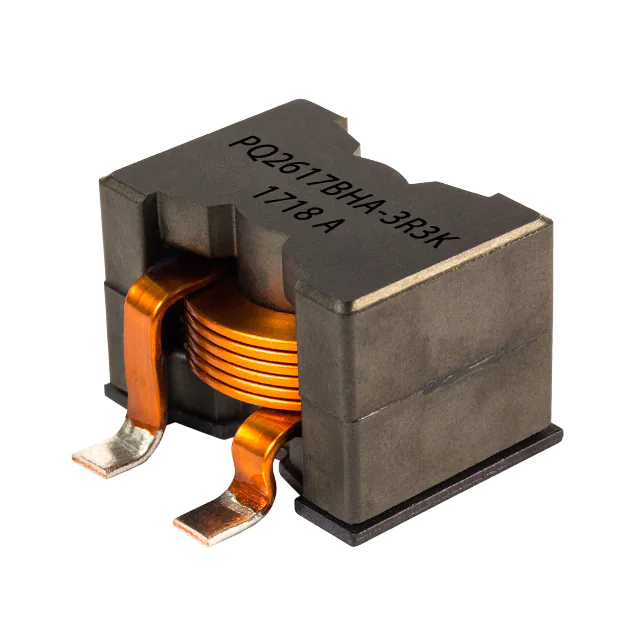

PQ2617BHA-150KFIXED IND 15UH 28A 2.5 MOHM SMD |
1,453 | - |
|
Datasheet | PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 28 A | 21.2A | Shielded | 2.5mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
