Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78F1R8K-RCFIXED IND 1.8UH 655MA 230MOHM TH |
8,935 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 655 mA | - | Unshielded | 230mOhm Max | 50 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78FR33K-RCFIXED IND 330NH 1.11A 95 MOHM TH |
8,419 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±10% | 1.11 A | - | Unshielded | 95mOhm Max | 40 @ 25MHz | 335MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
77F100K-TR-RCFIXED IND 10UH 500MA 650 MOHM TH |
8,267 | - |
|
Datasheet | 77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 500 mA | - | Unshielded | 650mOhm Max | 85 @ 7.96MHz | 40MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
77F4R7K-TR-RCFIXED IND 4.7UH 620MA 400MOHM TH |
8,266 | - |
|
Datasheet | 77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 620 mA | - | Unshielded | 400mOhm Max | 70 @ 7.96MHz | 80MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|

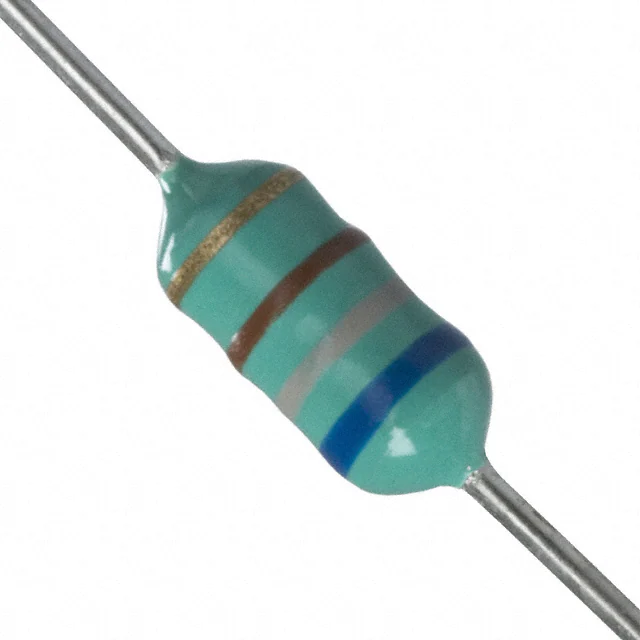

78F681J-RCFIXED IND 680UH 68MA 25.3 OHM TH |
7,962 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 68 mA | - | Unshielded | 25.3Ohm Max | 60 @ 790kHz | 2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F150J-RCFIXED IND 15UH 335MA 930 MOHM TH |
7,850 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 335 mA | - | Unshielded | 930mOhm Max | 50 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F121J-RCFIXED IND 120UH 160MA 4.7 OHM TH |
7,810 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 160 mA | - | Unshielded | 4.7Ohm Max | 60 @ 790kHz | 5.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F6R8J-RCFIXED IND 6.8UH 470MA 450MOHM TH |
7,213 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 470 mA | - | Unshielded | 450mOhm Max | 40 @ 7.9MHz | 28MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78FR56K-RCFIXED IND 560NH 950MA 120MOHM TH |
7,139 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±10% | 950 mA | - | Unshielded | 120mOhm Max | 40 @ 25MHz | 245MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F330J-RCFIXED IND 33UH 255MA 1.5 OHM TH |
6,843 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 255 mA | - | Unshielded | 1.5Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
