Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN6045-330MFIXED IND 33UH 1.4A 188 MOHM SMD |
1,184 | - |
|
Datasheet | SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.5A | Shielded | 188mOhm Max | 17 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRP2512A-4R7MFIXED IND 4.7UH 1.55A 235MOHM SM |
23,685 | - |
|
Datasheet | SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.55 A | 1.9A | Shielded | 235mOhm Max | 39 @ 1MHz | 37MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRN6045TA-6R8MFIXED IND 6.8UH 3.6A 34 MOHM SMD |
63,253 | - |
|
Datasheet | SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.6 A | 5.7A | Semi-Shielded | 34mOhm | 15 @ 1MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

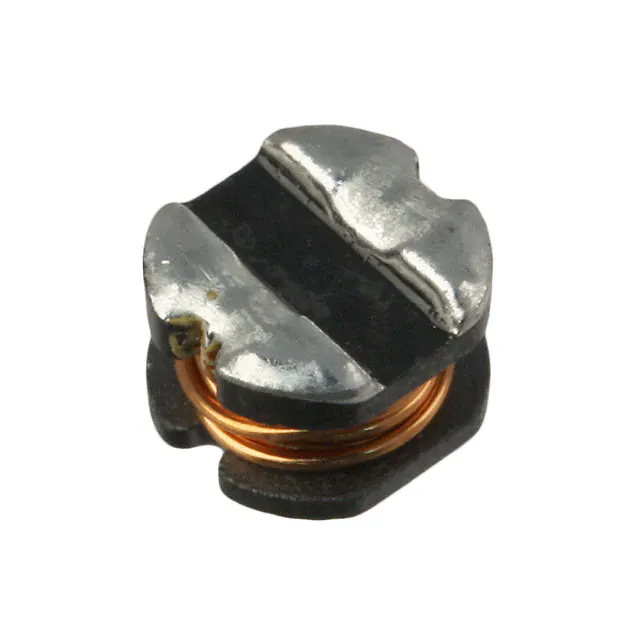

SDR0403-180MLFIXED IND 18UH 840MA 340MOHM SMD |
8,130 | - |
|
Datasheet | SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 840 mA | 1.3A | Unshielded | 340mOhm Max | 25 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
RLB9012-102KLFIXED IND 1MH 510MA 2.9 OHM TH |
113,727 | - |
|
Datasheet | RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 510 mA | - | Unshielded | 2.9Ohm Max | 20 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
SRN8040-101MFIXED IND 100UH 1A 400 MOHM SMD |
100,403 | - |
|
Datasheet | SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 400mOhm Max | 10 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-3R3YFIXED IND 3.3UH 5.6A 21 MOHM SMD |
14,406 | - |
|
Datasheet | SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.6 A | 5.5A | Shielded | 21mOhm Max | 13 @ 7.96MHz | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-2R2YFIXED IND 2.2UH 6.3A 13 MOHM SMD |
12,767 | - |
|
Datasheet | SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.3 A | 7.4A | Shielded | 13mOhm Max | 13 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-470MFIXED IND 47UH 1.4A 190 MOHM SMD |
6,853 | - |
|
Datasheet | SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 1.5A | Shielded | 190mOhm Max | 15 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-680MFIXED IND 68UH 1.1A 275 MOHM SMD |
1,414 | - |
|
Datasheet | SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 1.2A | Shielded | 275mOhm Max | 20 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
