Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

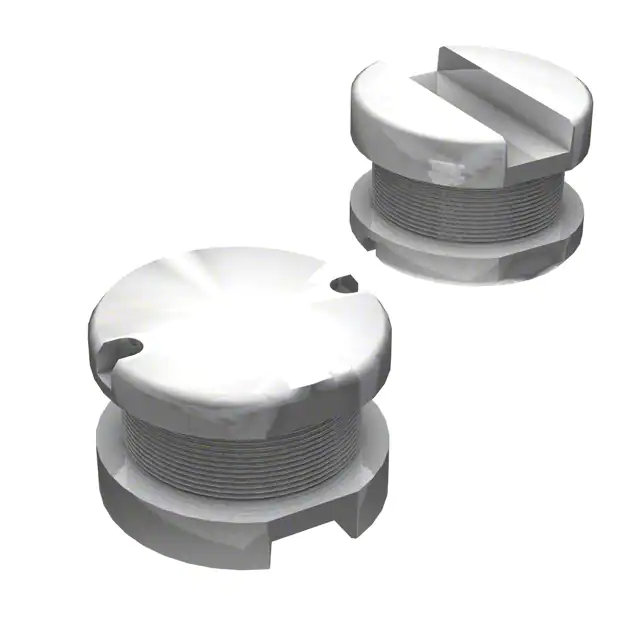

SDR0805-680KLFIXED IND 68UH 850MA 300MOHM SMD |
2,633 | - |
|
Datasheet | SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 850 mA | 1.3A | Unshielded | 300mOhm Max | 15 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-470KLFIXED IND 47UH 1A 200 MOHM SMD |
1,313 | - |
|
Datasheet | SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1 A | 1.6A | Unshielded | 200mOhm Max | 15 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
RLB0913-100KFIXED IND 10UH 3.1A 45 MOHM TH |
7,011 | - |
|
Datasheet | RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 3.1 A | 3A | Unshielded | 45mOhm | 50 @ 2.52MHz | 14MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-183KFIXED IND 18MH 90MA 40 OHM TH |
5,015 | - |
|
Datasheet | RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 90 mA | 40mA | Unshielded | 40Ohm | 30 @ 79.6kHz | 200kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-104KFIXED IND 100MH 40MA 235 OHM TH |
2,787 | - |
|
Datasheet | RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 40 mA | 20mA | Unshielded | 235Ohm | 20 @ 25.2kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-101KFIXED IND 100UH 1.2A 280 MOHM TH |
1,929 | - |
|
Datasheet | RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.2 A | 910mA | Unshielded | 280mOhm | 20 @ 796kHz | 3.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-563KFIXED IND 56MH 50MA 135 OHM TH |
1,506 | - |
|
Datasheet | RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 56 mH | ±10% | 50 mA | 20mA | Unshielded | 135Ohm | 20 @ 79.6kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-2R2KFIXED IND 2.2UH 5.6A 16 MOHM TH |
1,491 | - |
|
Datasheet | RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 5.6 A | 6.5A | Unshielded | 16mOhm | 20 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-122KFIXED IND 1.2MH 300MA 4 OHM TH |
1,197 | - |
|
Datasheet | RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 300 mA | 130mA | Unshielded | 4Ohm | 50 @ 252kHz | 1.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-4R7KFIXED IND 4.7UH 4A 30 MOHM TH |
1,139 | - |
|
Datasheet | RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 4 A | 4.3A | Unshielded | 30mOhm | 20 @ 7.96MHz | 51MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
