Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR6038-5R0YFIXED IND 5UH 2.9A 24 MOHM SMD |
5,070 | - |
|
Datasheet | SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±30% | 2.9 A | 2.95A | Shielded | 24mOhm Max | 8.9 @ 7.96MHz | 42.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
SRR6038-120YFIXED IND 12UH 1.7A 53 MOHM SMD |
5,032 | - |
|
Datasheet | SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±30% | 1.7 A | 1.95A | Shielded | 53mOhm Max | 8.3 @ 2.52MHz | 17.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
SRR6028-331YFIXED IND 330UH 370MA 1.4OHM SMD |
3,955 | - |
|
Datasheet | SRR6028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 370 mA | 270mA | Shielded | 1.4Ohm Max | 11 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
SRR6038-6R2YFIXED IND 6.2UH 2.5A 27 MOHM SMD |
3,876 | - |
|
Datasheet | SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±30% | 2.5 A | 2.6A | Shielded | 27mOhm Max | 9 @ 7.96MHz | 42.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
SRR6028-100YFIXED IND 10UH 2A 65 MOHM SMD |
2,582 | - |
|
Datasheet | SRR6028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2 A | 1.7A | Shielded | 65mOhm Max | 11 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
SRR7032-220MFIXED IND 22UH 960MA 135MOHM SMD |
2,345 | - |
|
Datasheet | SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 960 mA | 1.05A | Shielded | 135mOhm Max | 20 @ 2.52MHz | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
SRR7032-221MFIXED IND 220UH 300MA 1.3OHM SMD |
1,698 | - |
|
Datasheet | SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 300 mA | 320mA | Shielded | 1.3Ohm Max | 47 @ 796kHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
SRR7032-101MFIXED IND 100UH 450MA 540MOHM SM |
1,260 | - |
|
Datasheet | SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 450 mA | 500mA | Shielded | 540mOhm Max | 28 @ 796kHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|

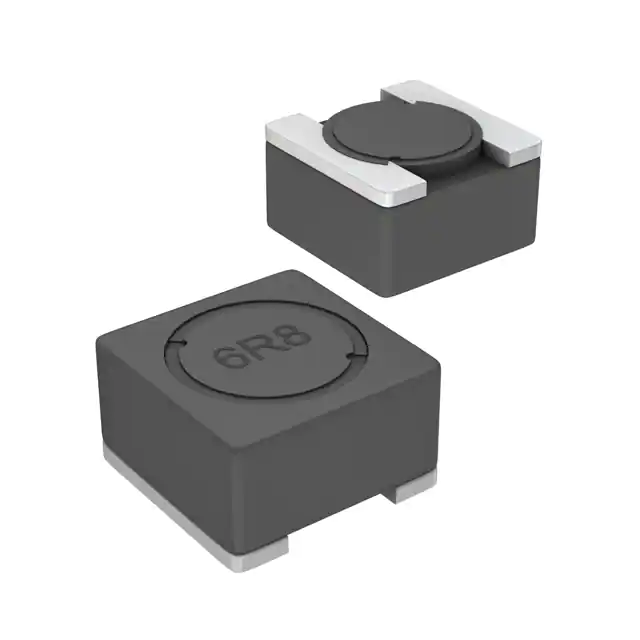

SRR4028-101YFIXED IND 100UH 510MA 600MOHM SM |
77,149 | - |
|
Datasheet | SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 510 mA | 300mA | Shielded | 600mOhm Max | 8.78 @ 796kHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-221YFIXED IND 220UH 340MA 1.25OHM SM |
59,877 | - |
|
Datasheet | SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 340 mA | 200mA | Shielded | 1.25Ohm Max | 11.3 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
