Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250-681-RCFIXED IND 680NH 420MA 450MOHM TH |
1,666 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 680 nH | ±10% | 420 mA | 420mA | Shielded | 450mOhm Max | 42 @ 25MHz | 190MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

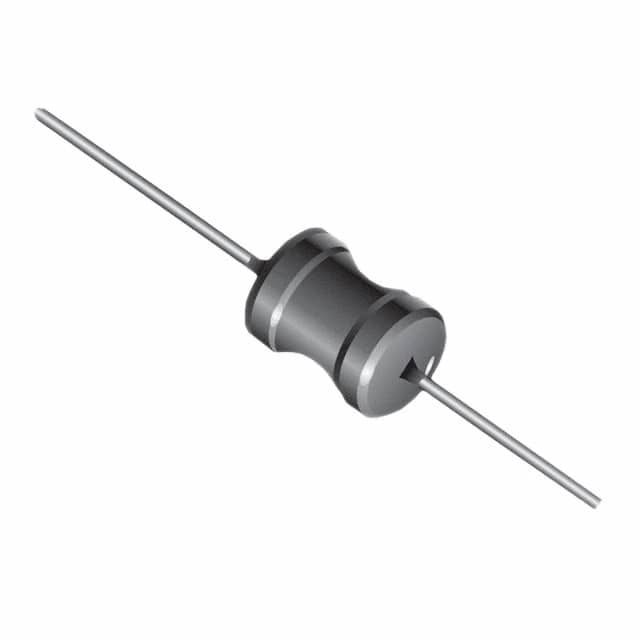

LPA1226-102KLFIXED IND 1MH 600MA 1.2 OHM TH |
2,125 | - |
|
Datasheet | LPA | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 600 mA | - | Unshielded | 1.2Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.472" Dia x 0.984" L (12.00mm x 25.00mm) | - |
|
|
LPA1226-250KLFIXED IND 25UH 4A 45 MOHM TH |
1,710 | - |
|
Datasheet | LPA | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 µH | ±10% | 4 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.472" Dia x 0.984" L (12.00mm x 25.00mm) | - |
|
|
LPA1226-251KLFIXED IND 250UH 1.2A 300 MOHM TH |
1,176 | - |
|
Datasheet | LPA | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 1.2 A | - | Unshielded | 300mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.472" Dia x 0.984" L (12.00mm x 25.00mm) | - |
|
|
LPA1226-501KLFIXED IND 500UH 800MA 500MOHM TH |
3,751 | - |
|
Datasheet | LPA | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 800 mA | - | Unshielded | 500mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.472" Dia x 0.984" L (12.00mm x 25.00mm) | - |
|
9230-30-RCFIXED IND 2.7UH 495MA 500MOHM TH |
4,709 | - |
|
Datasheet | 9230 | Axial | Bulk | Active | Molded | Ferrite | 2.7 µH | ±10% | 495 mA | - | Unshielded | 500mOhm Max | 37 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
9230-62-TR-RCFIXED IND 56UH 145MA 5.7 OHM TH |
3,249 | - |
|
Datasheet | 9230 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±10% | 145 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
5240FIXED IND 40UH 3A 82 MOHM TH |
2,533 | - |
|
Datasheet | 5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 40 µH | ±20% | 3 A | - | Unshielded | 82mOhm Max | - | 145MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|
|
5230FIXED IND 4UH 8A 12 MOHM TH |
4,906 | - |
|
Datasheet | 5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4 µH | ±20% | 8 A | - | Unshielded | 12mOhm Max | - | 165MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.380" Dia x 0.875" L (9.65mm x 22.23mm) | - |
|
|
5248FIXED IND 68UH 5A 54 MOHM TH |
3,933 | - |
|
Datasheet | 5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 5 A | - | Unshielded | 54mOhm Max | - | 4.5MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
