Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

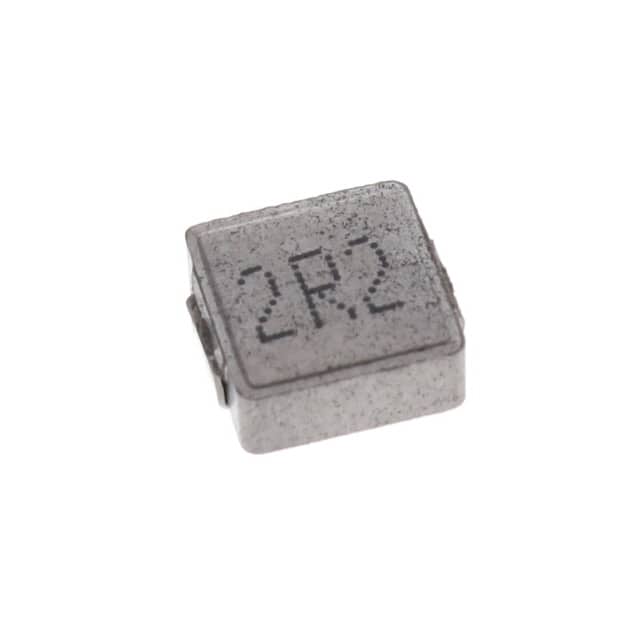

SRP6530A-2R2MIND,7.1X6.6X3MM,2.2UH20%,10A,SHD |
987 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 10 A | 14A | Shielded | 20mOhm Max | 30 @ 7.96MHz | 30MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

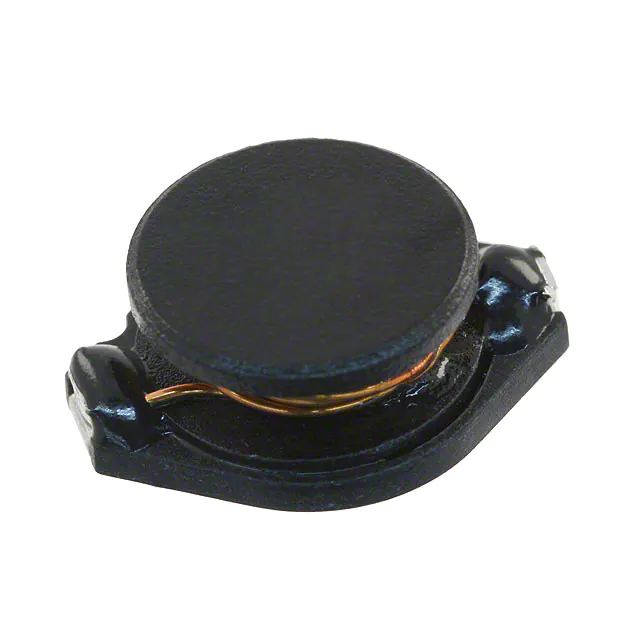

SDR1806-680MLFIXED IND 68UH 2.1A 130 MOHM SMD |
2,586 | - |
|
Datasheet | SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.1 A | 3.8A | Unshielded | 130mOhm Max | 22 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|

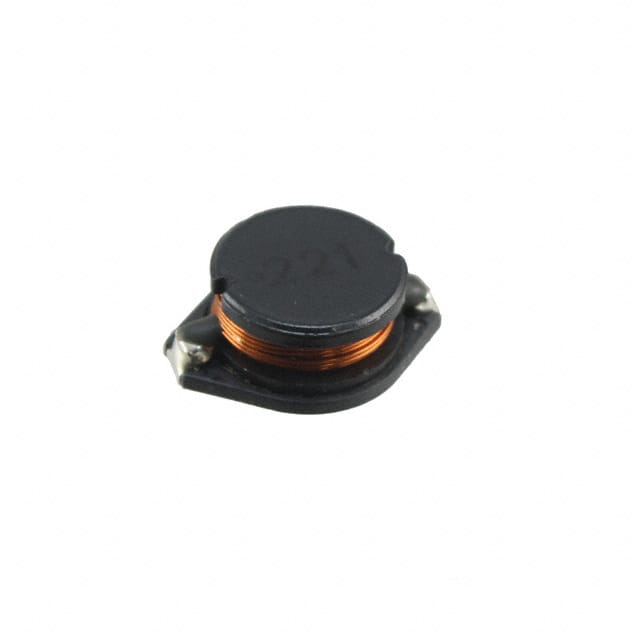

SDR1806-221KLFIXED IND 220UH 1.1A 420MOHM SMD |
1,671 | - |
|
Datasheet | SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.1 A | 2.2A | Unshielded | 420mOhm Max | 20 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SRU1048A-6R8YFIXED IND 6.8UH 4.8A 18 MOHM SMD |
1,175 | - |
|
Datasheet | SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.8 A | 4.1A | Shielded | 18mOhm Max | 10 @ 7.96MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
SRP1038CC-330MIND SMD 33UH 4A |
426 | - |
|
Datasheet | SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 33 µH | ±20% | 4 A | 6A | Shielded | 112mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

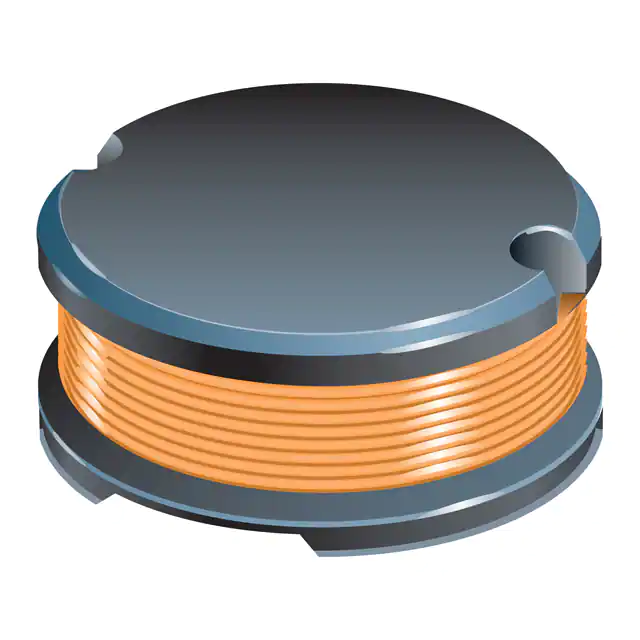

SDR1307A-101KFIXED IND 100UH 1.9A 180MOHM SMD |
431 | - |
|
Datasheet | SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.9 A | 3A | Unshielded | 180mOhm Max | 25 @ 796kHz | 5.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
SRR1280-220MFIXED IND 22UH 4.3A 38.6MOHM SMD |
66,941 | - |
|
Datasheet | SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.3 A | 4.1A | Shielded | 38.6mOhm Max | 20 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SRR1240-100MFIXED IND 10UH 4A 32 MOHM SMD |
59,354 | - |
|
Datasheet | SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Shielded | 32mOhm Max | 17 @ 2.52MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
SRR1260-221KFIXED IND 220UH 1.38A 380MOHM SM |
47,902 | - |
|
Datasheet | SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.38 A | 1.3A | Shielded | 380mOhm Max | 22 @ 796kHz | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1240-150MFIXED IND 15UH 3.5A 47 MOHM SMD |
30,666 | - |
|
Datasheet | SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 3.2A | Shielded | 47mOhm Max | 16 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
