Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2123-HFIXED IND 820UH 1.4A 370 MOHM TH |
4,274 | - |
|
Datasheet | 2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 820 µH | ±15% | 1.4 A | - | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2124-HFIXED IND 1MH 1.3A 400 MOHM TH |
1,146 | - |
|
Datasheet | 2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 1 mH | ±15% | 1.3 A | - | Unshielded | 400mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
5504FIXED IND 50UH 5.6A 45 MOHM TH |
3,908 | - |
|
Datasheet | 5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 µH | ±20% | 5.6 A | - | Unshielded | 45mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia x 0.880" L (20.57mm x 22.35mm) | - |
|
5502FIXED IND 10UH 9A 17 MOHM TH |
3,104 | - |
|
Datasheet | 5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | - | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | - |
|
|
5507FIXED IND 250UH 4A 89 MOHM TH |
2,797 | - |
|
Datasheet | 5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 250 µH | ±20% | 4 A | - | Unshielded | 89mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia x 1.620" L (20.57mm x 41.15mm) | - |
|

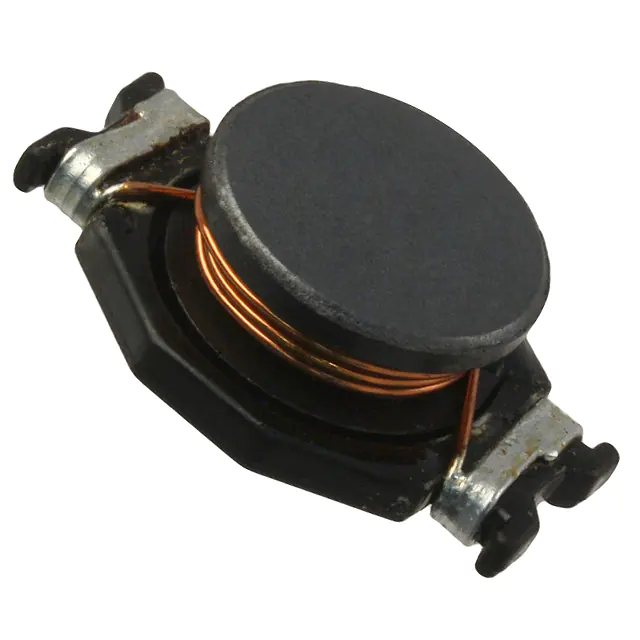

SDR2207-561KLFIXED IND 560UH 800MA 1 OHM SMD |
1,093 | - |
|
Datasheet | SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 800 mA | 1.3A | Unshielded | 1Ohm Max | 18 @ 1MHz | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
SRP1040-R47MFIXED IND 470NH 26A 1.6 MOHM SMD |
3,206 | - |
|
Datasheet | SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 470 nH | ±20% | 26 A | 38A | Shielded | 1.6mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-100MFIXED IND 10UH 5A 35 MOHM SMD |
1,412 | - |
|
Datasheet | SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 10 µH | ±20% | 5 A | 9A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-150MFIXED IND 15UH 5A 57 MOHM SMD |
4,442 | - |
|
Datasheet | SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 15 µH | ±20% | 5 A | 7A | Shielded | 57mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-2R5MFIXED IND 2.5UH 11.5A 8.7MOHM SM |
4,972 | - |
|
Datasheet | SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 2.5 µH | ±20% | 11.5 A | 14A | Shielded | 8.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
