Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2102-H-RCFIXED IND 12UH 10.3A 7 MOHM TH |
2,533 | - |
|
Datasheet | 2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 12 µH | ±15% | 10.3 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2108-H-RCFIXED IND 39UH 4.8A 32 MOHM TH |
3,366 | - |
|
Datasheet | 2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 39 µH | ±15% | 4.8 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2123-H-RCFIXED IND 820UH 1.4A 370 MOHM TH |
4,230 | - |
|
Datasheet | 2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 820 µH | ±15% | 1.4 A | - | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
5220FIXED IND 8.8UH 10A 21 MOHM TH |
1,702 | - |
|
Datasheet | 5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 8.8 µH | ±20% | 10 A | - | Unshielded | 21mOhm Max | - | 64MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
2100LL-121-V-RCFIXED IND 120UH 4.1A 39 MOHM TH |
2,608 | - |
|
Datasheet | 2100LL | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Sendust | 120 µH | ±15% | 4.1 A | - | Shielded | 39mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|

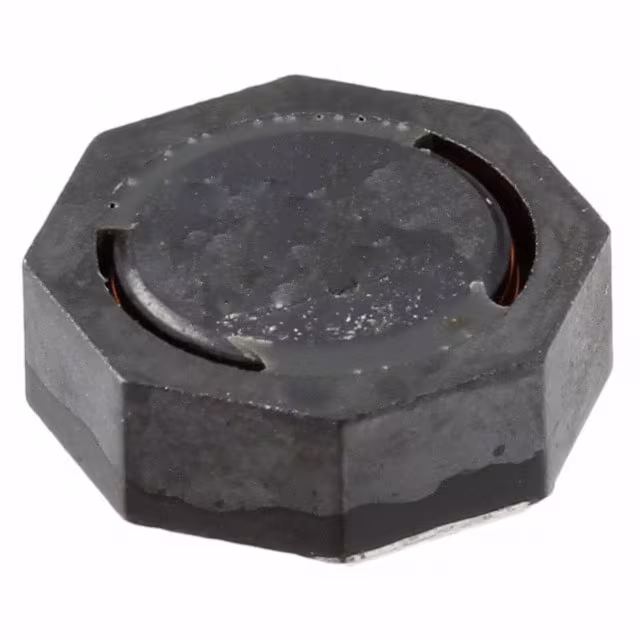

PM104SH-3R8-RCFIXED IND 3.8UH 5.5A 15 MOHM SMD |
2,338 | - |
|
Datasheet | PM104SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.8 µH | ±30% | 5.5 A | 5.5A | Shielded | 15mOhm Max | 14 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
9250-186FIXED IND 18MH 21MA 175 OHM TH |
1,433 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 21 mA | 10mA | Shielded | 175Ohm Max | 30 @ 79kHz | 280kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
2200HT-120-HFIXED IND 12UH 10.9A 15 MOHM TH |
3,883 | - |
|
Datasheet | 2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 12 µH | ±15% | 10.9 A | - | Shielded | 15mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2200HT-390-HFIXED IND 39UH 8.1A 26 MOHM TH |
2,117 | - |
|
Datasheet | 2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 39 µH | ±15% | 8.1 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2200HT-181-HFIXED IND 180UH 4.6A 82 MOHM TH |
1,939 | - |
|
Datasheet | 2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 180 µH | ±15% | 4.6 A | - | Shielded | 82mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
