Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

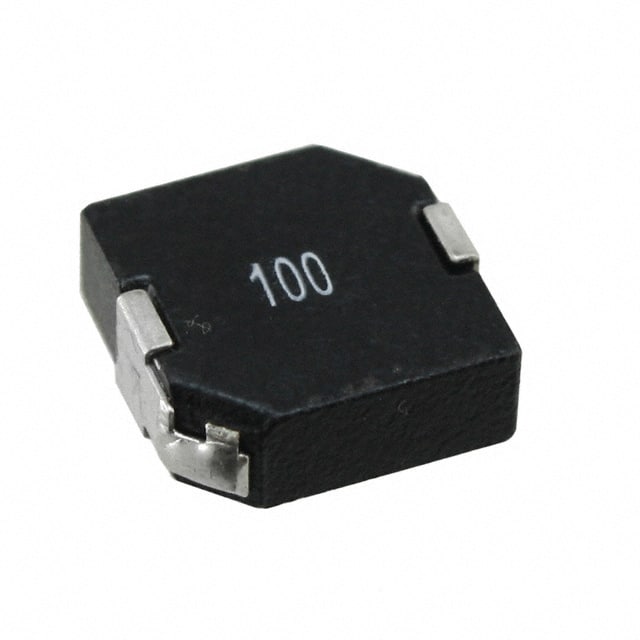

PM13560S-100MFIXED IND 10UH 7.5A 14.9MOHM SMD |
2,465 | - |
|
Datasheet | PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±20% | 7.5 A | - | Shielded | 14.9mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
2200HT-150-V-RCFIXED IND 15UH 10.3A 17 MOHM TH |
1,715 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 15 µH | ±15% | 10.3 A | - | Shielded | 17mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-180-V-RCFIXED IND 18UH 9.7A 18 MOHM TH |
4,414 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 18 µH | ±15% | 9.7 A | - | Shielded | 18mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-1R2-V-RCFIXED IND 1.2UH 23.8A 3 MOHM TH |
3,925 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.2 µH | ±15% | 23.8 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-270-V-RCFIXED IND 27UH 8.9A 22 MOHM TH |
1,384 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 27 µH | ±15% | 8.9 A | - | Shielded | 22mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-2R2-V-RCFIXED IND 2.2UH 20.1A 5 MOHM TH |
2,146 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 2.2 µH | ±15% | 20.1 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-391-V-RCFIXED IND 390UH 3A 190 MOHM TH |
1,579 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 390 µH | ±15% | 3 A | - | Shielded | 190mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-3R3-V-RCFIXED IND 3.3UH 18.8A 5 MOHM TH |
4,458 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 3.3 µH | ±15% | 18.8 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-470-V-RCFIXED IND 47UH 6.4A 42 MOHM TH |
4,552 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 47 µH | ±15% | 6.4 A | - | Shielded | 42mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-5R6-V-RCFIXED IND 5.6UH 16.1A 7 MOHM TH |
4,389 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 5.6 µH | ±15% | 16.1 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
