Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1120-101KFIXED IND 100UH 4A 80 MOHM TH |
2,741 | - |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | - | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-151KFIXED IND 150UH 4A 98 MOHM TH |
2,389 | - |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 4 A | - | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-221KFIXED IND 220UH 2.8A 150 MOHM TH |
2,721 | - |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 2.8 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-271KFIXED IND 270UH 2A 213 MOHM TH |
1,439 | - |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 2 A | - | Unshielded | 213mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-471KFIXED IND 470UH 1.6A 355 MOHM TH |
2,031 | - |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.6 A | - | Unshielded | 355mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-102KFIXED IND 1MH 1A 818 MOHM TH |
4,841 | - |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | - | Unshielded | 818mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

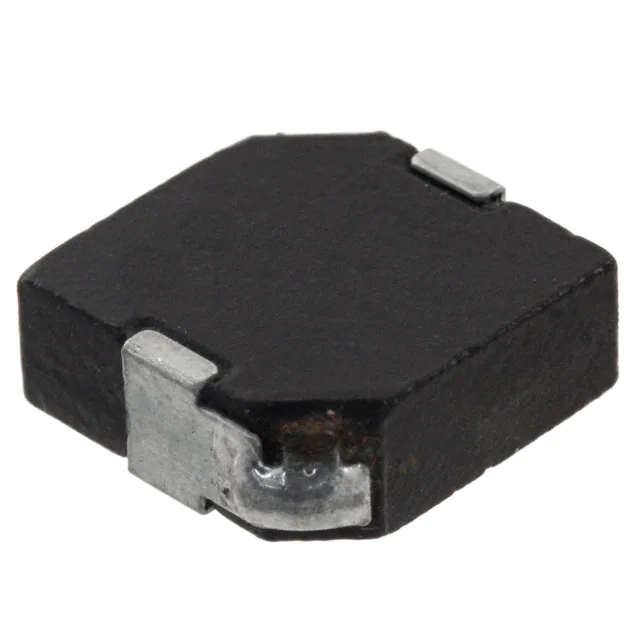

PM13666S-1R0M-RCFIXED IND 1UH 29A 2.5 MOHM SMD |
2,033 | - |
|
Datasheet | PM13666S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 29 A | 50A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
SRP1060VR-R15MIND 0.15UH 90A SLD SMD |
2,206 | - |
|
Datasheet | SRP1060VR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | Metal | 150 nH | ±20% | 90 A | 87A | Shielded | 210mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.453" (11.50mm) |
|
|
SRP1060VR-90NMIND 0.09UH 90A SLD SMD |
3,374 | - |
|
Datasheet | SRP1060VR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | Metal | 90 nH | ±20% | 90 A | 95A | Shielded | 210mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.453" (11.50mm) |
|
|
SRP1060VR-R10MIND 0.10UH 90A SLD SMD |
1,252 | - |
|
Datasheet | SRP1060VR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | Metal | 100 nH | ±20% | 90 A | 93A | Shielded | 210mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.453" (11.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
