Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

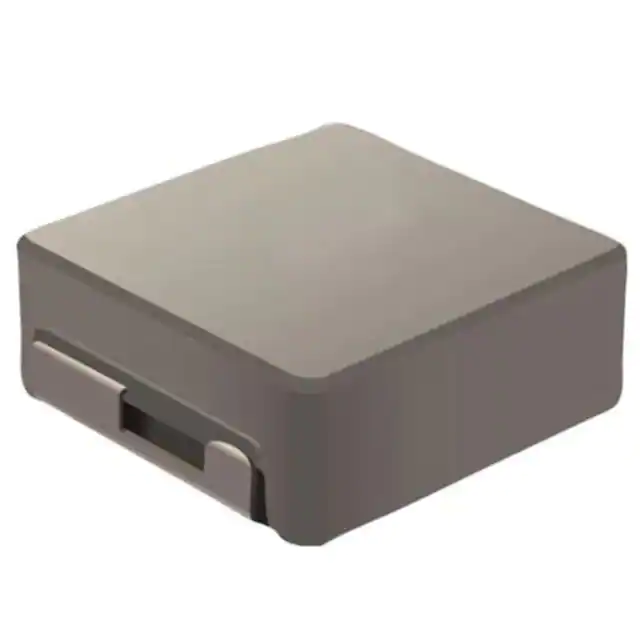

SRP1770C-470MFIXED IND 47UH 8.7A 53 MOHM SMD |
2,255 | - |
|
Datasheet | SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 47 µH | ±20% | 8.7 A | 13A | Shielded | 53mOhm Max | 20 @ 100kHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-150MFIXED IND 15UH 14A 19.5 MOHM SMD |
3,498 | - |
|
Datasheet | SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 15 µH | ±20% | 14 A | 23A | Shielded | 19.5mOhm Max | 20 @ 100kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-220MFIXED IND 22UH 12A 27.6 MOHM SMD |
1,129 | - |
|
Datasheet | SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 22 µH | ±20% | 12 A | 19A | Shielded | 27.6mOhm Max | 20 @ 100kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-1R0MFIXED IND 1UH 48A 1.5 MOHM SMD |
4,520 | - |
|
Datasheet | SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 48 A | 68A | Shielded | 1.5mOhm Max | 20 @ 100kHz | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-1R5MFIXED IND 1UH 42A 2.1 MOHM SMD |
1,925 | - |
|
Datasheet | SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 42 A | 55A | Shielded | 2.1mOhm Max | 20 @ 100kHz | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-8R2MFIXED IND 8.2UH 18A 10.8MOHM SMD |
3,066 | - |
|
Datasheet | SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 8.2 µH | ±20% | 18 A | 28A | Shielded | 10.8mOhm Max | 20 @ 100kHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
2300HT-150-V-RCFIXED IND 15UH 20.8A 7 MOHM TH |
4,047 | - |
|
Datasheet | 2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 15 µH | ±15% | 20.8 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-180-V-RCFIXED IND 18UH 20.2A 7 MOHM TH |
2,595 | - |
|
Datasheet | 2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 18 µH | ±15% | 20.2 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-1R2-V-RCFIXED IND 1.2UH 38.7A 2 MOHM TH |
3,833 | - |
|
Datasheet | 2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.2 µH | ±15% | 38.7 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-1R8-V-RCFIXED IND 1.8UH 34.6A 3 MOHM TH |
2,380 | - |
|
Datasheet | 2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.8 µH | ±15% | 34.6 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
