Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5632FIXED IND 10MH 1.5A 1.56 OHM TH |
4,197 | - |
|
Datasheet | 5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 1.5 A | - | Unshielded | 1.56Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
1140-150K-RCFIXED IND 15UH 19.9A 6 MOHM TH |
3,134 | - |
|
Datasheet | 1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 19.9 A | 53.9A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-181K-RCFIXED IND 180UH 7.8A 45 MOHM TH |
2,860 | - |
|
Datasheet | 1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 7.8 A | 15.5A | Unshielded | 45mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-2R2M-RCFIXED IND 2.2UH 34.5A 2 MOHM TH |
3,898 | - |
|
Datasheet | 1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 34.5 A | 80A | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-682K-RCFIXED IND 6.8MH 1.2A 1.76 OHM TH |
1,913 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 1.2 A | 2.5A | Unshielded | 1.76Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-2R7M-RCFIXED IND 2.7UH 28.1A 3 MOHM TH |
4,872 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 28.1 A | 80A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-820K-RCFIXED IND 82UH 10.9A 23 MOHM TH |
1,620 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 10.9 A | 23.1A | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.028" (26.10mm) |
|
1140-470K-RCIND1.15X1.5X1.03IN,47UH10%12.3A, |
4,483 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 12.3 A | 30.6A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|

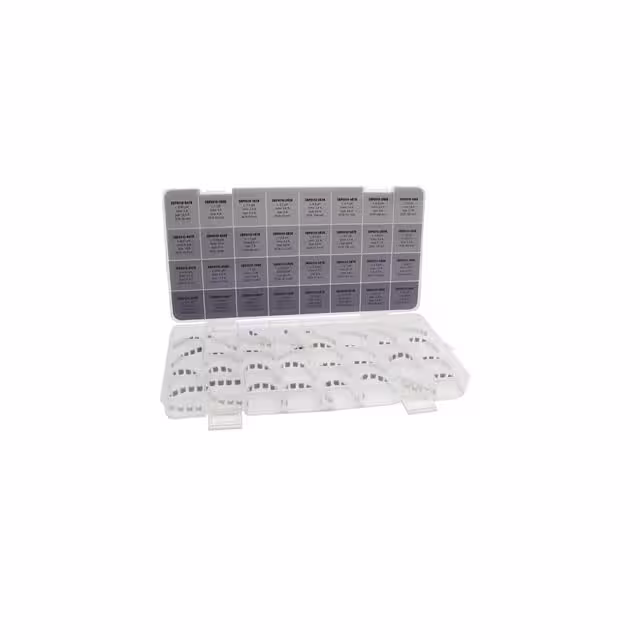

SRP05-LABSRP0510,0512,0515,0520 SERIES DE |
1,440 | - |
|
Datasheet | - | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

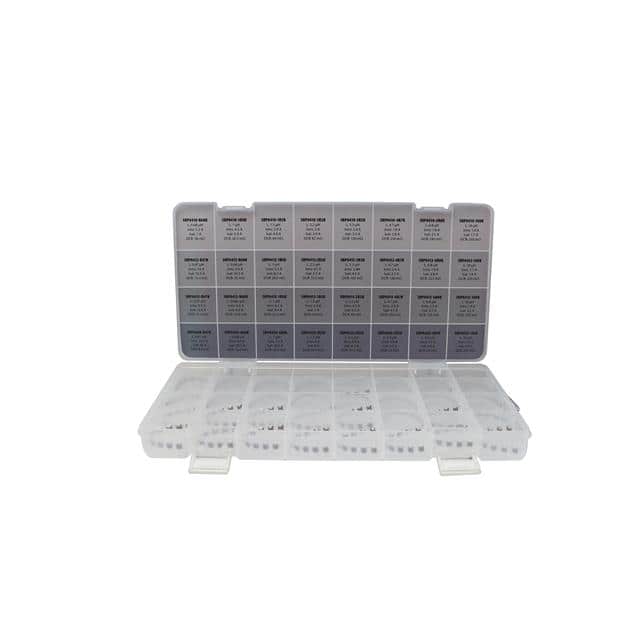

SRP04-LABSRP0410,0412,0415,0420 SERIES DE |
1,509 | - |
|
Datasheet | - | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
