Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1280-181KFIXED IND 180UH 1.75A 300MOHM SM |
2,554 | - |
|
Datasheet | SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 1.75 A | 1.88A | Shielded | 300mOhm Max | 24 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SRR1260-100MFIXED IND 10UH 5.5A 20 MOHM SMD |
1,725 | - |
|
Datasheet | SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.5 A | 5.5A | Shielded | 20mOhm Max | 32 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|

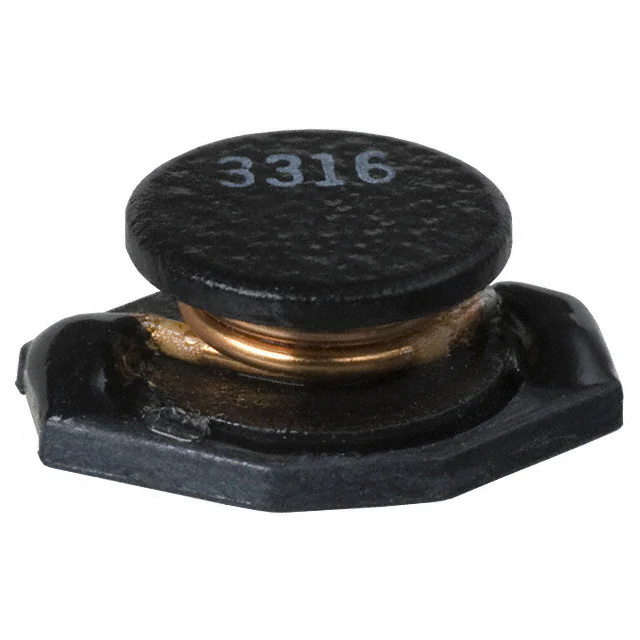

PM3316-151M-RCFIXED IND 150UH 800MA 590MOHM SM |
6,499 | - |
|
Datasheet | PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 800 mA | 1A | Unshielded | 590mOhm | 30 @ 50kHz | 6MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
SRR1210-680MFIXED IND 68UH 3A 102 MOHM SMD |
126,347 | - |
|
Datasheet | SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 3 A | 2.7A | Shielded | 102mOhm Max | 12 @ 2.52MHz | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SRP4020TA-100MFIXED IND 10UH 1.8A 243 MOHM SMD |
87,624 | - |
|
Datasheet | SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 1.8 A | 2.3A | Shielded | 243mOhm Max | 10 @ 100kHz | 19MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRP4020TA-3R3MFIXED IND 3.3UH 3.5A 76 MOHM SMD |
15,927 | - |
|
Datasheet | SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 3.5 A | 4A | Shielded | 76mOhm Max | 10 @ 100kHz | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRR1210-101MFIXED IND 100UH 2.5A 135MOHM SMD |
14,285 | - |
|
Datasheet | SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.5 A | 2.2A | Shielded | 135mOhm Max | 16 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SRP4020TA-6R8MFIXED IND 6.8UH 2.1A 172MOHM SMD |
452 | - |
|
Datasheet | SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 2.1 A | 2.8A | Shielded | 172mOhm Max | 10 @ 100kHz | 24MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SRP4012TA-4R7MFIXED IND 4.7UH 2A 145 MOHM SMD |
7,685 | - |
|
Datasheet | SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 2 A | 2.5A | Shielded | 145mOhm Max | 10 @ 100kHz | 35MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
SRP4020TA-2R2MFIXED IND 2.2UH 4A 61 MOHM SMD |
7,379 | - |
|
Datasheet | SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 4 A | 6A | Shielded | 61mOhm Max | 10 @ 100kHz | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
