Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F912AFFIXED IND 91MH 31MA 250 OHM TH |
2,092 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 91 mH | ±5% | 31 mA | - | Unshielded | 250Ohm Max | 51 @ 79kHz | 166kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
|
|
70F752AFFIXED IND 75MH 33MA 222 OHM TH |
1,630 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 75 mH | ±5% | 33 mA | - | Unshielded | 222Ohm Max | 53 @ 79kHz | 174kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
|
|
70F502AFFIXED IND 50MH 37MA 175 OHM TH |
4,875 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 mH | ±5% | 37 mA | - | Unshielded | 175Ohm Max | 57 @ 79kHz | 196kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.400" Dia x 0.630" L (10.16mm x 16.00mm) | - |
|
|
70F251AFFIXED IND 250MH 37MA 468 OHM TH |
2,485 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 250 mH | ±5% | 37 mA | - | Unshielded | 468Ohm Max | 52 @ 25kHz | 65kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.550" Dia x 0.880" L (13.97mm x 22.35mm) | - |
|
|
70F271AFFIXED IND 270MH 36MA 490 OHM TH |
4,802 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 mH | ±5% | 36 mA | - | Unshielded | 490Ohm Max | 53 @ 25kHz | 62kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.570" Dia x 0.880" L (14.48mm x 22.35mm) | - |
|
|
70F501AFFIXED IND 500MH 30MA 736 OHM TH |
3,554 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 500 mH | ±5% | 30 mA | - | Unshielded | 736Ohm Max | 53 @ 25kHz | 52kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|
|
70F181AFFIXED IND 180MH 41MA 374 OHM TH |
2,363 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 180 mH | ±5% | 41 mA | - | Unshielded | 374Ohm Max | 51 @ 25kHz | 75kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.520" Dia x 0.880" L (13.21mm x 22.35mm) | - |
|
|
74F336APFIXED IND 3.3UH 600MA 700MOHM TH |
4,157 | - |
|
Datasheet | 74F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 3.3 µH | ±20% | 600 mA | - | Unshielded | 700mOhm Max | 45 @ 7.96MHz | 108MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.200" Dia x 0.500" L (5.08mm x 12.70mm) | - |
|
|
9220-00FIXED IND 270UH 110MA 8.2 OHM TH |
4,694 | - |
|
Datasheet | 9220 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 110 mA | - | Unshielded | 8.2Ohm Max | 65 @ 7.9MHz | 5.6MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|

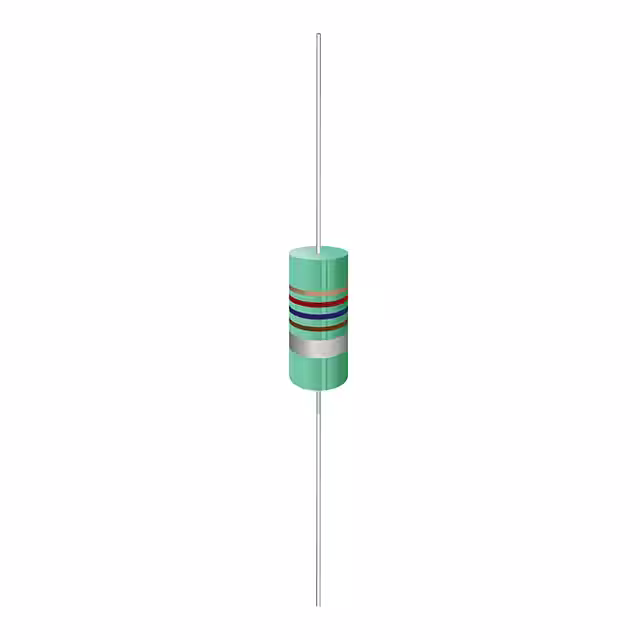

9220-02FIXED IND 300UH 107MA 8.7 OHM TH |
1,998 | - |
|
Datasheet | 9220 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 300 µH | ±5% | 107 mA | - | Unshielded | 8.7Ohm Max | 65 @ 7.9MHz | 5.3MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
