Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F124AI-RCFIXED IND 120UH 135MA 8.16OHM TH |
4,567 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 120 µH | ±5% | 135 mA | - | Unshielded | 8.16Ohm Max | 40 @ 790kHz | 3.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F504AI-RCFIXED IND 500UH 91MA 18 OHM TH |
4,413 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 500 µH | ±5% | 91 mA | - | Unshielded | 18Ohm Max | 49 @ 790kHz | 1.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - |
|
70F822AF-RCFIXED IND 82MH 32MA 238 OHM TH |
3,366 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 mH | ±5% | 32 mA | - | Unshielded | 238Ohm Max | 50 @ 79kHz | 168kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
|
|
70F126AI-RCFIXED IND 1.2UH 1.666A 72MOHM TH |
2,589 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1.2 µH | ±10% | 1.666 A | - | Unshielded | 72mOhm Max | 45 @ 7.9MHz | 118MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

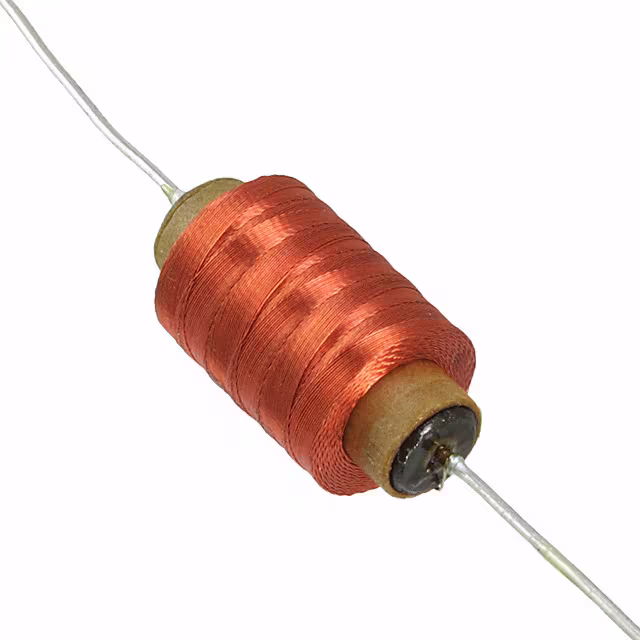

70F151AF-RCFIXED IND 150MH 44MA 328 OHM TH |
1,846 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 mH | ±5% | 44 mA | - | Unshielded | 328Ohm Max | 49 @ 25kHz | 77kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.500" Dia x 0.880" L (12.70mm x 22.35mm) | - |
|
|
70F562AF-RCFIXED IND 56MH 36MA 189 OHM TH |
4,465 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 56 mH | ±5% | 36 mA | - | Unshielded | 189Ohm Max | 57 @ 79kHz | 188kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.400" Dia x 0.630" L (10.16mm x 16.00mm) | - |
|
|
70F823AI-RCFIXED IND 8.2MH 40MA 92.4 OHM TH |
3,789 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 8.2 mH | ±5% | 40 mA | - | Unshielded | 92.4Ohm Max | 48 @ 250kHz | 600kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - |
|
|
70F154AI-RCFIXED IND 150UH 135MA 8.16OHM TH |
4,548 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 150 µH | ±5% | 135 mA | - | Unshielded | 8.16Ohm Max | 47 @ 790kHz | 3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
|
70F564AI-RCFIXED IND 560UH 88MA 19.2 OHM TH |
2,376 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 560 µH | ±5% | 88 mA | - | Unshielded | 19.2Ohm Max | 41 @ 790kHz | 1.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - |
|
|
70F156AI-RCFIXED IND 1.5UH 1.443A 96MOHM TH |
1,234 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1.5 µH | ±10% | 1.443 A | - | Unshielded | 96mOhm Max | 42 @ 7.9MHz | 102MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
