Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

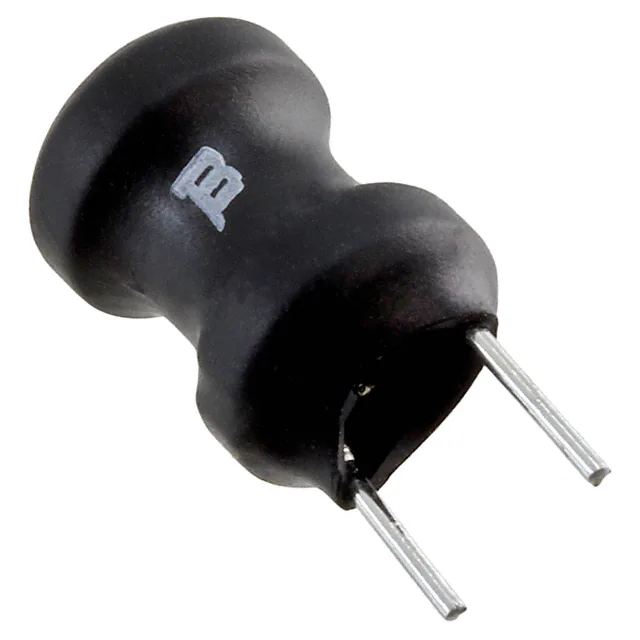

PT12120SLFIXED IND 600UH 200MA 4 OHM TH |
4,000 | - |
|
Datasheet | PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | 600 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.6MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
|
PT12130SLFIXED IND 4.7MH 50MA 18 OHM TH |
1,837 | - |
|
Datasheet | PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | 4.7 mH | ±10% | 50 mA | - | Unshielded | 18Ohm Max | 90 @ 252kHz | 600kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
|
PT12133SJLFIXED IND 8.2MH 50MA 26 OHM TH |
4,187 | - |
|
Datasheet | PT121 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 8.2 mH | ±5% | 50 mA | - | Unshielded | 26Ohm Max | 90 @ 252kHz | 500kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
CS321613-120KFIXED IND 12UH 25MA 900 MOHM SMD |
2,425 | - |
|
Datasheet | CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 12 µH | ±10% | 25 mA | - | Shielded | 900mOhm Max | 65 @ 2MHz | 22MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-180KFIXED IND 18UH 25MA 1.4 OHM SMD |
2,562 | - |
|
Datasheet | CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 18 µH | ±10% | 25 mA | - | Shielded | 1.4Ohm Max | 45 @ 1MHz | 18MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-1R2KFIXED IND 1.2UH 100MA 300MOHM SM |
4,538 | - |
|
Datasheet | CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.2 µH | ±10% | 100 mA | - | Shielded | 300mOhm Max | 80 @ 10MHz | 65MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-1R5KFIXED IND 1.5UH 50MA 300MOHM SMD |
2,003 | - |
|
Datasheet | CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 µH | ±10% | 50 mA | - | Shielded | 300mOhm Max | 80 @ 10MHz | 60MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-1R8KFIXED IND 1.8UH 50MA 500MOHM SMD |
3,403 | - |
|
Datasheet | CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.8 µH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 80 @ 10MHz | 55MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-270KFIXED IND 27UH 25MA 1.5 OHM SMD |
2,007 | - |
|
Datasheet | CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 27 µH | ±10% | 25 mA | - | Shielded | 1.5Ohm Max | 45 @ 1MHz | 14MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-2R2KFIXED IND 2.2UH 50MA 600MOHM SMD |
2,825 | - |
|
Datasheet | CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 80 @ 10MHz | 50MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
