Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTHC2220F-102K1MH SMD WW MOLDED INDUCTOR |
4,940 | - |
|
Datasheet | CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 85 mA | - | Shielded | 15Ohm Max | 20 @ 252kHz | 1.8MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
|
CTHC2220F-470K47UH SMD WW MOLDED INDUCTOR |
4,015 | - |
|
Datasheet | CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 340 mA | - | Shielded | 850mOhm Max | 10 @ 2.52MHz | 8.5MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
CTDSS0805F-100M10UH SMD SHIELDED POWR INDUCTOR |
1,110 | - |
|
Datasheet | CTDSS0805F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.5 A | - | Shielded | 100mOhm Max | 40 @ 2.52MHz | 28MHz | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|

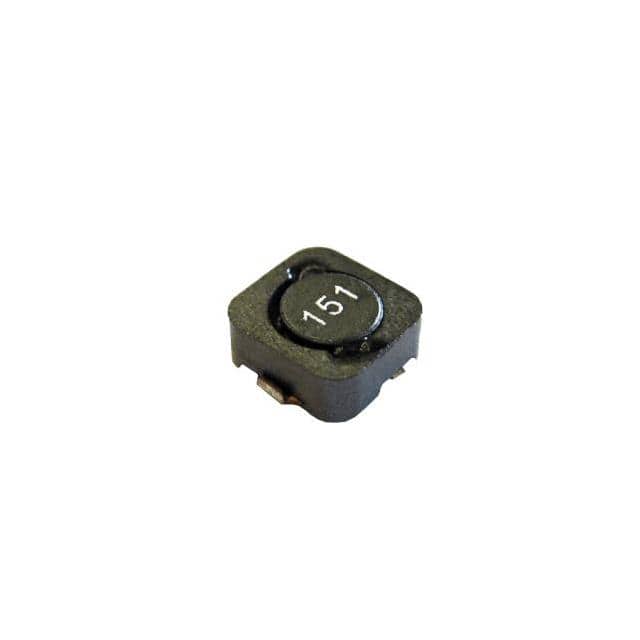

CTCDRH62BF-151M150UH SMD SHIELDED POWR INDUCTOR |
1,990 | - |
|
Datasheet | CTCDRH62BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | - | 280mA | Shielded | 2.18Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
CTCDRH62BF-4R0N4.0UH SMD SHIELDED POWR INDUCTOR |
1,225 | - |
|
Datasheet | CTCDRH62BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4 µH | ±30% | - | 1.63A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
CTMC1812SF-3R3JSMD FERRITE CORE WW INDUCTOR |
2,010 | - |
|
Datasheet | CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 355 mA | - | Unshielded | 800mOhm Max | 50 @ 7.96MHz | 110MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-681KSMD FERRITE CORE WW INDUCTOR |
2,000 | - |
|
Datasheet | CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-120KSMD FERRITE CORE WW INDUCTOR |
2,000 | - |
|
Datasheet | CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 225 mA | - | Unshielded | 2Ohm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-2R7KSMD FERRITE CORE WW INDUCTOR |
1,500 | - |
|
Datasheet | CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 370 mA | - | Unshielded | 750mOhm Max | 50 @ 7.96MHz | 150MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-5R6JSMD FERRITE CORE WW INDUCTOR |
1,010 | - |
|
Datasheet | CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
