Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSHB0430R-3R3MSMD MOLDING POWER CHOKE |
961 | - |
|
Datasheet | CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 3.3 µH | ±20% | 7.5 A | 6.5A | Shielded | 30.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
CSHB0421R-R22MSMD MOLDING POWER CHOKE |
958 | - |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 220 nH | ±20% | 15 A | 18A | Shielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0430R-5R6MSMD MOLDING POWER CHOKE |
952 | - |
|
Datasheet | CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 5.6 µH | ±20% | 6 A | 5.5A | Shielded | 58.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421R-R56MSMD MOLDING POWER CHOKE |
935 | - |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 560 nH | ±20% | 11 A | 12A | Shielded | 9.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|

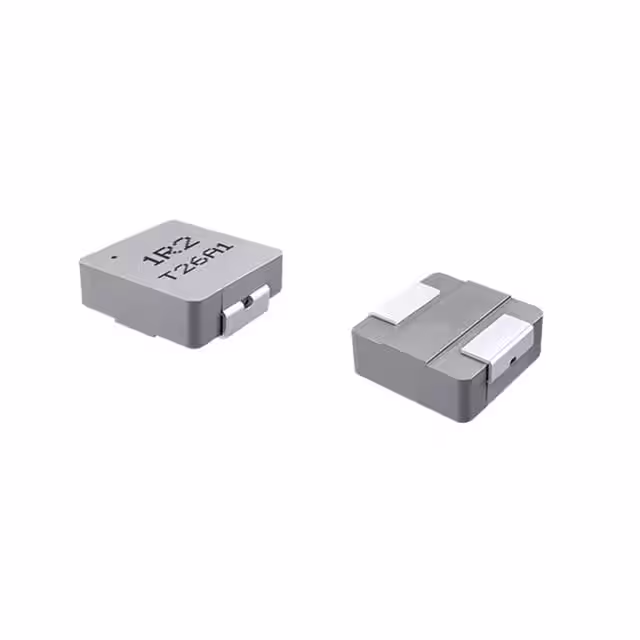

CSHB0415-4R7MSMD MOLDING POWER CHOKE |
921 | - |
|
Datasheet | CSHB0415 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 4.7 µH | ±20% | 3.8 A | 3.8A | Shielded | 92mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
CSHB0421-100MSMD MOLDING POWER CHOKE |
920 | - |
|
Datasheet | CSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 2.5 A | 2.5A | Shielded | 129mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0430R-150MSMD MOLDING POWER CHOKE |
783 | - |
|
Datasheet | CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 15 µH | ±20% | 2.5 A | 2.5A | Shielded | 225mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421R-150MSMD MOLDING POWER CHOKE |
732 | - |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 15 µH | ±20% | 2.2 A | 2.2A | Shielded | 255mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0421R-R47MSMD MOLDING POWER CHOKE |
728 | - |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 470 nH | ±20% | 11.5 A | 13A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0415-2R2MSMD MOLDING POWER CHOKE |
717 | - |
|
Datasheet | CSHB0415 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 4.8 A | 4.8A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
