Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPDX1515A-4R7MCTHT CLASS D IND FOR DIGITAL AMP |
350 | - |
|
Datasheet | CPDX1515A | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 21 A | 44.3A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | - | 0.610" L x 0.602" W (15.50mm x 15.30mm) | 0.630" (16.00mm) |
|

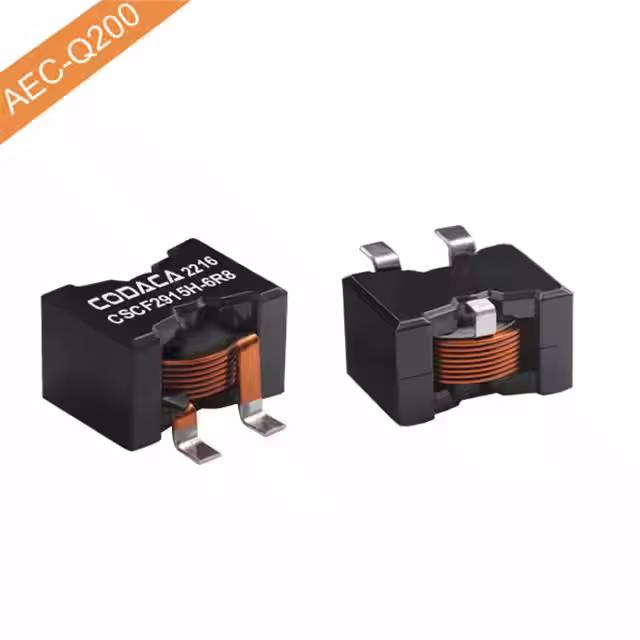

CSCF2915H-100MCSMD HIGH CURRENT POWER INDUCTOR |
515 | - |
|
Datasheet | CSCF2915H | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 32 A | 23A | Shielded | 1.65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
|
CSCM1290-220MSMD HIGH CURRENT POWER INDUCTOR |
250 | - |
|
Datasheet | CSCM1290 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 7.7 A | 6.8A | Shielded | 23.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.354" (9.00mm) |
|
|
CSCM1480L-8R0MSMD HIGH CURRENT POWER INDUCTOR |
250 | - |
|
Datasheet | CSCM1480L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8 µH | ±20% | 11 A | 12.5A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480L-6R1MSMD HIGH CURRENT POWER INDUCTOR |
250 | - |
|
Datasheet | CSCM1480L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.1 µH | ±20% | 12.5 A | 14.5A | Shielded | 6.03mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480L-4R5MSMD HIGH CURRENT POWER INDUCTOR |
250 | - |
|
Datasheet | CSCM1480L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.5 µH | ±20% | 16 A | 17A | Shielded | 4.97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480L-120MSMD HIGH CURRENT POWER INDUCTOR |
248 | - |
|
Datasheet | CSCM1480L | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 12 µH | ±20% | 8.5 A | 10A | Shielded | 13.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480H-4R7MSMD HIGH CURRENT POWER INDUCTOR |
248 | - |
|
Datasheet | CSCM1480H | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 11 A | 22A | Shielded | 7.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480L-100MSMD HIGH CURRENT POWER INDUCTOR |
246 | - |
|
Datasheet | CSCM1480L | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 10 A | 11.5A | Shielded | 9.58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | - | - |
|
|
CSCM1480L-3R1MSMD HIGH CURRENT POWER INDUCTOR |
246 | - |
|
Datasheet | CSCM1480L | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 3.1 µH | ±20% | 17.5 A | 20A | Shielded | 3.23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
