Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSM2214-3R3MSMD HIGH CURRENT POWER INDUCTOR |
118 | - |
|
Datasheet | CSM | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 36.5 A | 52A | Shielded | 1.87mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|
|
CSM2214-330MSMD HIGH CURRENT POWER INDUCTOR |
113 | - |
|
Datasheet | CSM | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 33 µH | ±20% | 12.8 A | 13.5A | Shielded | 12.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|
|
CSM2214-220MSMD HIGH CURRENT POWER INDUCTOR |
111 | - |
|
Datasheet | CSM | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 23.5 A | 12.5A | Shielded | 4.32mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|
|
CPDX1310A-4R7MCCLASS D INDUCTOR FOR DIGITAL AMP |
363 | - |
|
Datasheet | CPDX1310A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 14.2 A | 36A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.571" (14.50mm) |
|
|
CSM2214-6R8MSMD HIGH CURRENT POWER INDUCTOR |
120 | - |
|
Datasheet | CSM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Alloy Powder | 6.8 µH | ±20% | 36.5 A | 27A | Shielded | 1.87mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|

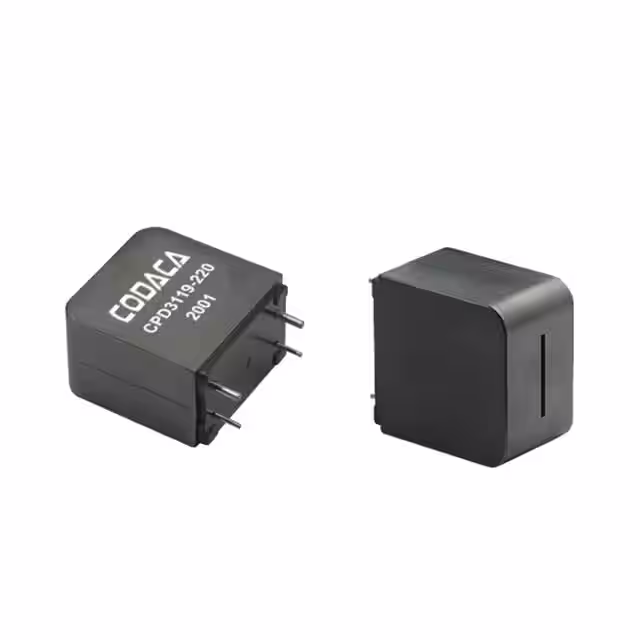

CPD3119-100MTHT CLASS D IND FOR DIGITAL AMP |
154 | - |
|
Datasheet | CPD3119 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 17 A | 61A | Shielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
|
CPD3119-220MCLASS D INDUCTOR FOR DIGITAL AMP |
152 | - |
|
Datasheet | CPD3119 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 15.5 A | 33A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
CPG2717-220MTHT HIGH CURRENT POWER INDUCTOR |
184 | - |
|
Datasheet | CPG2717 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 33.7 A | 12A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | - | - |
|

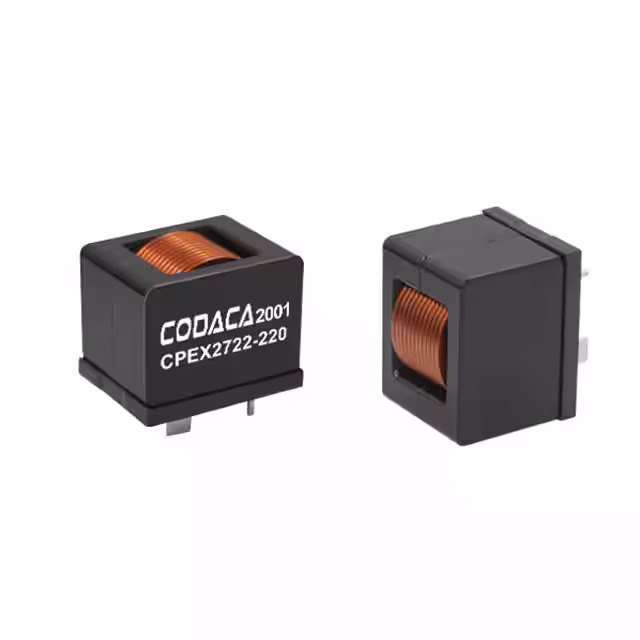

CPEX2722-220MCTHT HIGH CURRENT POWER INDUCTOR |
525 | - |
|
Datasheet | CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 25 A | 33A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.898" (22.80mm) |
|
|
CPEX2722-270MCTHT HIGH CURRENT POWER INDUCTOR |
287 | - |
|
Datasheet | CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 27 µH | ±20% | 25 A | 30A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.877" (22.30mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
