Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPD1717BA-220MTHT CLASS D IND FOR DIGITAL AMP |
1,723 | - |
|
Datasheet | CPD1717BA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 9 A | 11.9A | Shielded | 17.44mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.760" (19.30mm) |
|
|
CPD1717BA-100MTHT CLASS D IND FOR DIGITAL AMP |
4,449 | - |
|
Datasheet | CPD1717BA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 14 A | 20A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.760" (19.30mm) |
|

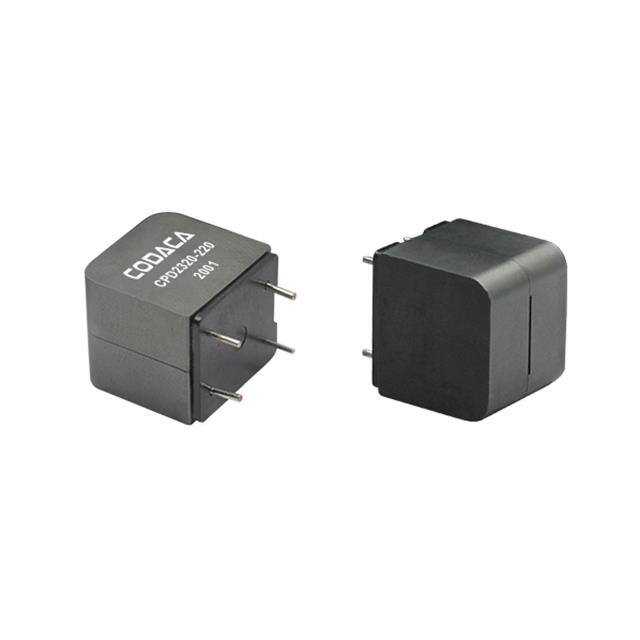

CPD2320-100MTHT CLASS D IND FOR DIGITAL AMP |
1,647 | - |
|
Datasheet | CPD2320 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 14 A | 43A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|
|
CPD2320S-220MTHT CLASS D IND FOR DIGITAL AMP |
1,315 | - |
|
Datasheet | CPD2320S | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 7 A | 32A | Shielded | 28.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|
|
VSRU2714-4R7KAUTOMOTIVE SMD HICURRENT PWR IND |
2,391 | - |
|
Datasheet | VSRU27 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±10% | 37.2 A | 56.4A | Unshielded | 1.67mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.575" (14.60mm) |
|
|
VSRU2715-6R8KAUTOMOTIVE SMD HICURRENT PWR IND |
4,446 | - |
|
Datasheet | VSRU27 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±10% | 35 A | 44.1A | Unshielded | 1.99mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.622" (15.80mm) |
|
|
VSRU2716-100KAUTOMOTIVE SMD HICURRENT PWR IND |
1,009 | - |
|
Datasheet | VSRU27 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±10% | 33.1 A | 34.9A | Unshielded | 2.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.665" (16.90mm) |
|
|
VSRU2711-1R5KAUTOMOTIVE SMD HICURRENT PWR IND |
2,095 | - |
|
Datasheet | VSRU27 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±10% | 54 A | 67A | Unshielded | 0.56mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.469" (11.90mm) |
|
|
CPEX2020A-150MCTHT HIGH CURRENT POWER INDUCTOR |
2,426 | - |
|
Datasheet | CPEX2020A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 26 A | 26A | Shielded | 3.72mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.688" (17.50mm) |
|
|
CPEX2020A-100MCTHT HIGH CURRENT POWER INDUCTOR |
1,237 | - |
|
Datasheet | CPEX2020A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 30 A | 35A | Shielded | 2.64mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.689" (17.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
