Fixed Inductors

Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)

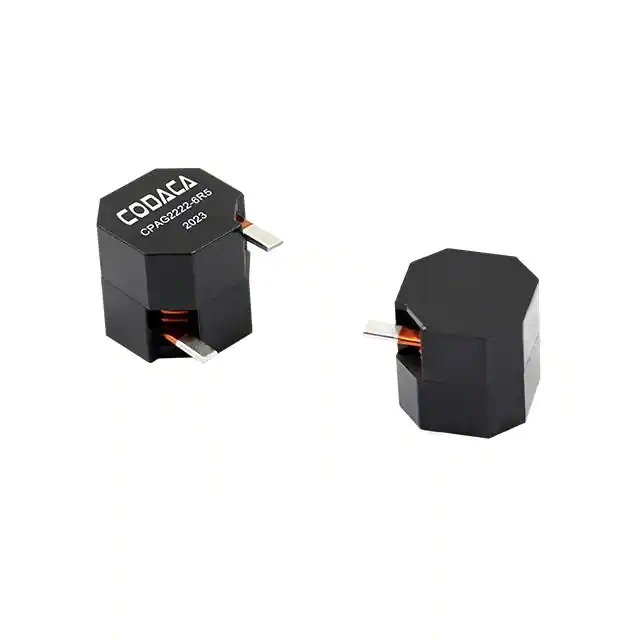

CPAG2222-3R2MC THT HIGH CURRENT POWER INDUCTOR CODACA	3,994	-	RFQ	Datasheet	CPAG2222	Nonstandard	Tray	Active	Wirewound	Metal Composite	3.2 µH	±20%	49 A	76A	Shielded	0.85mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	Flat Wire, High Current	Through Hole	Radial	-	-
CPEX2017S-3R0MC THT HIGH CURRENT POWER INDUCTOR CODACA	4,171	-	RFQ	Datasheet	CPEX2017S	Vertical, 2 PC Pin	Tray	Active	Wirewound	Metal Composite	3 µH	±20%	41.8 A	88A	Shielded	1.38mOhm Max	-	-	-	-55°C ~ 155°C	100 kHz	-	Through Hole	-	0.807" L x 0.689" W (20.50mm x 17.50mm)	0.807" (20.50mm)
CPEX2017S-140MC THT HIGH CURRENT POWER INDUCTOR CODACA	3,675	-	RFQ	Datasheet	CPEX2017S	Vertical, 2 PC Pin	Tray	Active	Wirewound	Metal Composite	14 µH	±20%	20.5 A	41A	Shielded	5.76mOhm Max	-	-	-	-55°C ~ 155°C	100 kHz	-	Through Hole	-	0.807" L x 0.689" W (20.50mm x 17.50mm)	0.807" (20.50mm)
CPEX2017S-6R0MC THT HIGH CURRENT POWER INDUCTOR CODACA	4,861	-	RFQ	Datasheet	CPEX2017S	Vertical, 2 PC Pin	Tray	Active	Wirewound	Metal Composite	6 µH	±20%	31 A	61A	Shielded	2.58mOhm Max	-	-	-	-55°C ~ 155°C	100 kHz	-	Through Hole	-	0.807" L x 0.689" W (20.50mm x 17.50mm)	0.807" (20.50mm)
CPEX2017S-2R2MC THT HIGH CURRENT POWER INDUCTOR CODACA	4,281	-	RFQ	Datasheet	CPEX2017S	Vertical, 2 PC Pin	Tray	Active	Wirewound	Metal Composite	2.2 µH	±20%	52.5 A	104A	Shielded	0.95mOhm Max	-	-	-	-55°C ~ 155°C	100 kHz	-	Through Hole	-	0.807" L x 0.689" W (20.50mm x 17.50mm)	0.807" (20.50mm)
CPEX2017S-4R9MC THT HIGH CURRENT POWER INDUCTOR CODACA	1,821	-	RFQ	Datasheet	CPEX2017S	Vertical, 2 PC Pin	Tray	Active	Wirewound	Metal Composite	4.9 µH	±20%	34 A	68A	Shielded	2.14mOhm Max	-	-	-	-55°C ~ 155°C	100 kHz	-	Through Hole	-	0.807" L x 0.689" W (20.50mm x 17.50mm)	0.807" (20.50mm)
CPEX2017S-100MC THT HIGH CURRENT POWER INDUCTOR CODACA	3,266	-	RFQ	Datasheet	CPEX2017S	Vertical, 2 PC Pin	Tray	Active	Wirewound	Metal Composite	10 µH	±20%	24 A	47A	Shielded	4.31mOhm Max	-	-	-	-55°C ~ 155°C	100 kHz	-	Through Hole	-	0.807" L x 0.689" W (20.50mm x 17.50mm)	0.807" (20.50mm)
CPEX2017S-8R6MC THT HIGH CURRENT POWER INDUCTOR CODACA	3,766	-	RFQ	Datasheet	CPEX2017S	Vertical, 2 PC Pin	Tray	Active	Wirewound	Metal Composite	8.6 µH	±20%	26 A	51A	Shielded	3.44mOhm Max	-	-	-	-55°C ~ 155°C	100 kHz	-	Through Hole	-	0.807" L x 0.689" W (20.50mm x 17.50mm)	0.807" (20.50mm)
CPCE2624A-330MC THT HIGH CURRENT POWER INDUCTOR CODACA	1,370	-	RFQ	Datasheet	CPCE2624A	Nonstandard	Tray	Active	Wirewound	Metal Composite	33 µH	±20%	20 A	24A	Shielded	4.8mOhm Max	-	-	-	-55°C ~ 150°C	100 kHz	Flat Wire, High Current	Through Hole	-	1.181" L x 1.039" W (30.00mm x 26.40mm)	0.886" (22.50mm)
CPCE2624A-270MC THT HIGH CURRENT POWER INDUCTOR CODACA	3,608	-	RFQ	Datasheet	CPCE2624A	Nonstandard	Tray	Active	Wirewound	Metal Composite	27 µH	±20%	22 A	26A	Shielded	4.5mOhm Max	-	-	-	-55°C ~ 150°C	100 kHz	Flat Wire, High Current	Through Hole	-	1.181" L x 1.039" W (30.00mm x 26.40mm)	0.886" (22.50mm)

WINSUN SOURCING SUPPORT

Need Help Sourcing Fixed Inductors?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Fixed Inductors FAQ

Common questions about filtering, comparing and sourcing Fixed Inductors components.

How can I narrow the Fixed Inductors selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
