Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805CS-821XGRCFIXED IND 820NH 180MA 2.35OHM SM |
1,939 | - |
|
Datasheet | 0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 820 nH | ±2% | 180 mA | - | Unshielded | 2.35Ohm Max | 23 @ 50MHz | 310MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0603CS-R21XGRWFIXED IND 210NH 200MA 2.06OHM SM |
832 | - |
|
Datasheet | 0603CS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 210 nH | ±2% | 200 mA | - | Unshielded | 2.06Ohm Max | 27 @ 100MHz | 895MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
RFC0807BV-224KEFIXED INDUCTOR 220UH SMD |
102 | - |
|
Datasheet | RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 220 µH | ±10% | 600 mA | 1.57A | Unshielded | 850mOhm Max | - | 4.1MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
DO3316P-105MLDFIXED IND 1MH 300MA 3OHM SM |
9,102 | - |
|
Datasheet | DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1 mH | ±20% | 300 mA | 300mA | Unshielded | 3Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
DO3316P-152MLDFIXED IND 1.5UH 6.4A 10MOHM SM |
2,560 | - |
|
Datasheet | DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.5 µH | ±20% | 6.4 A | 8A | Unshielded | 10mOhm Max | - | 90MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
DO3316P-222MLDFIXED IND 2.2UH 6.1A 12MOHM SM |
2,184 | - |
|
Datasheet | DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 12mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
DO3316P-102MLDFIXED IND 1UH 6.8A 9MOHM SM |
1,854 | - |
|
Datasheet | DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1 µH | ±20% | 6.8 A | 9A | Unshielded | 9mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
DO3316P-684MLDFIXED IND 680UH 400MA 2.02OHM SM |
997 | - |
|
Datasheet | DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 680 µH | ±20% | 400 mA | 400mA | Unshielded | 2.02Ohm Max | - | 2.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|

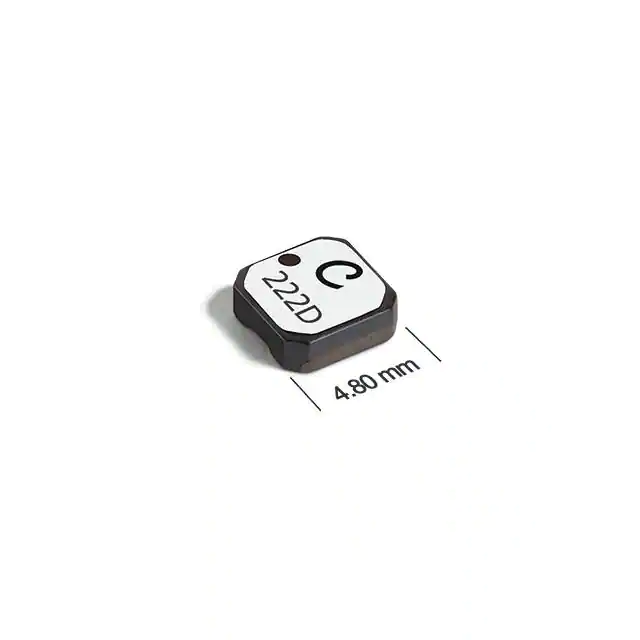

LPS5015-563MRCPOWER INDUCTOR, SHIELDED, 20% TO |
3,423 | - |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 56 µH | ±20% | 400 mA | 400mA | Shielded | 1.13Ohm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-153MRCPOWER INDUCTOR, SHIELDED, 20% TO |
3,174 | - |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 15 µH | ±20% | 730 mA | 800mA | Shielded | 360mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
